Foot 90 S

SKU 21.1707/0 Category

Fitting for profiles with maximum dimension of 45 x 90, 90 x 90 and 90 x 180. Floor fastening of guard units, signboards, racks

£34.34 + VAT

Foot 90 S
Foot 90 S - Image 2
Foot 90 S - Image 3

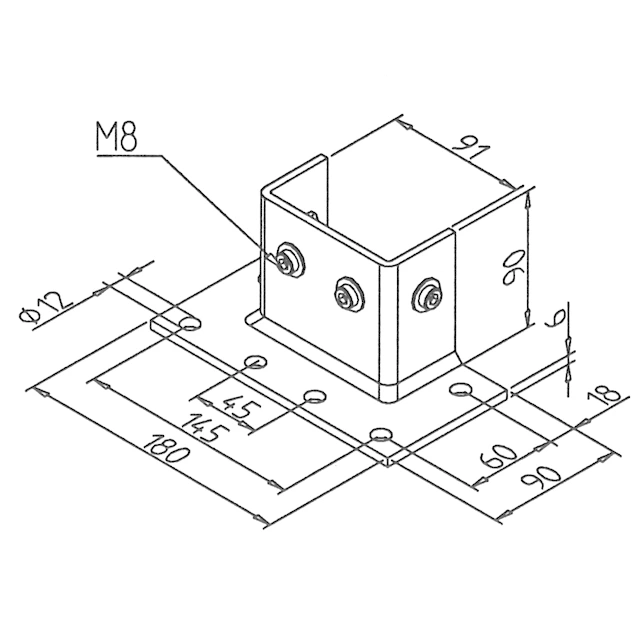

Technical Data

  • Steel, galvanized
  • With galvanized steel fastening material, for profile
  • Weight = 1.438 kg/piece

Applications

  • Fitting for profiles with maximum dimension of 45 x 90, 90 x 90 and 90 x 180

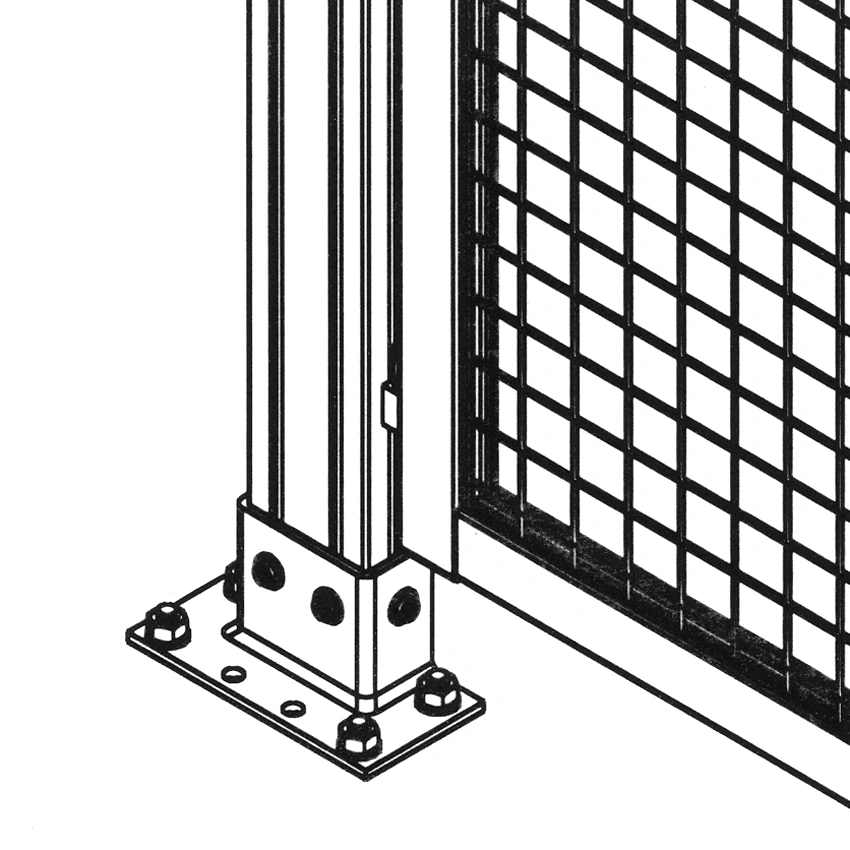

  • Floor fastening of guard units, signboards, racks
  • As connection element for wall attachment; can be used both-sided

Assembly

  • Insert the square nut with spring steel sheet into the profile groove; preassemble the screws
  • Fix the foot on the floor or the wall; use the floor anchors or the universal plugs with a hexagonal head screw
  • Tighten fastening screws
