Strengthening element 45
Reinforcement of profiled superstructures according to the principle of truss construction
£39.62 + VAT

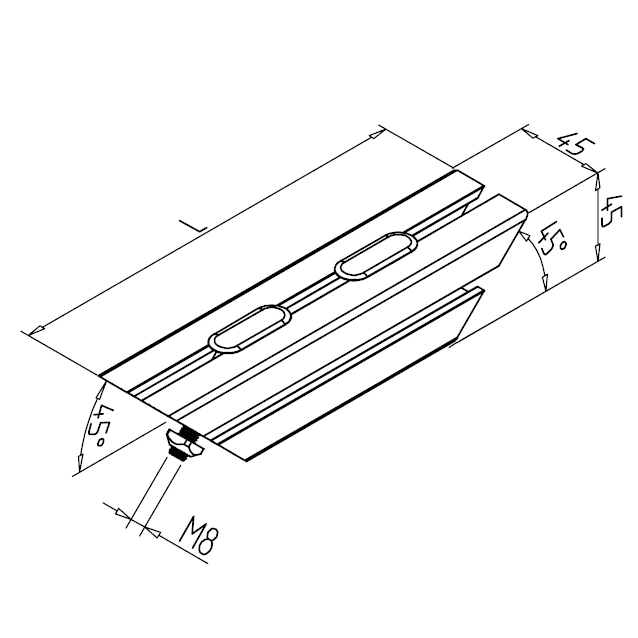

Technical Data
- Aluminium, anodized E6/EV1
- Length (l) : 360 mm
- Profile 45 x 45, ready for use
- Both ends cut at 45° with counter-bores for fastening kit
- With fastening material steel, zinc plated
- For use on vertical struts, strengthening element part no.21.1761/7 (square nuts with position-fixing)
- Other lengths and designs under part no. 21.1761/5 on request
- Weight = 0.870 kg/piece
Applications

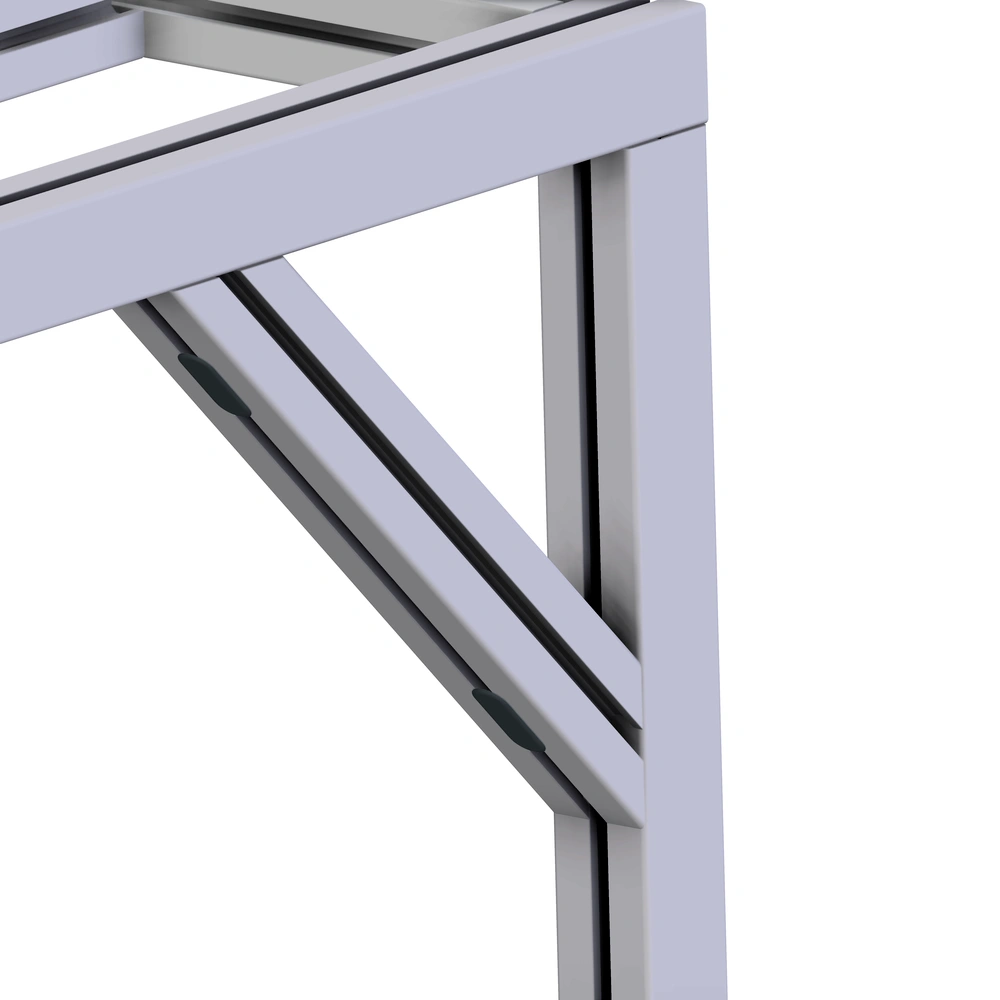

- Reinforcement of profiled superstructures according to the principle of truss construction
Assembly

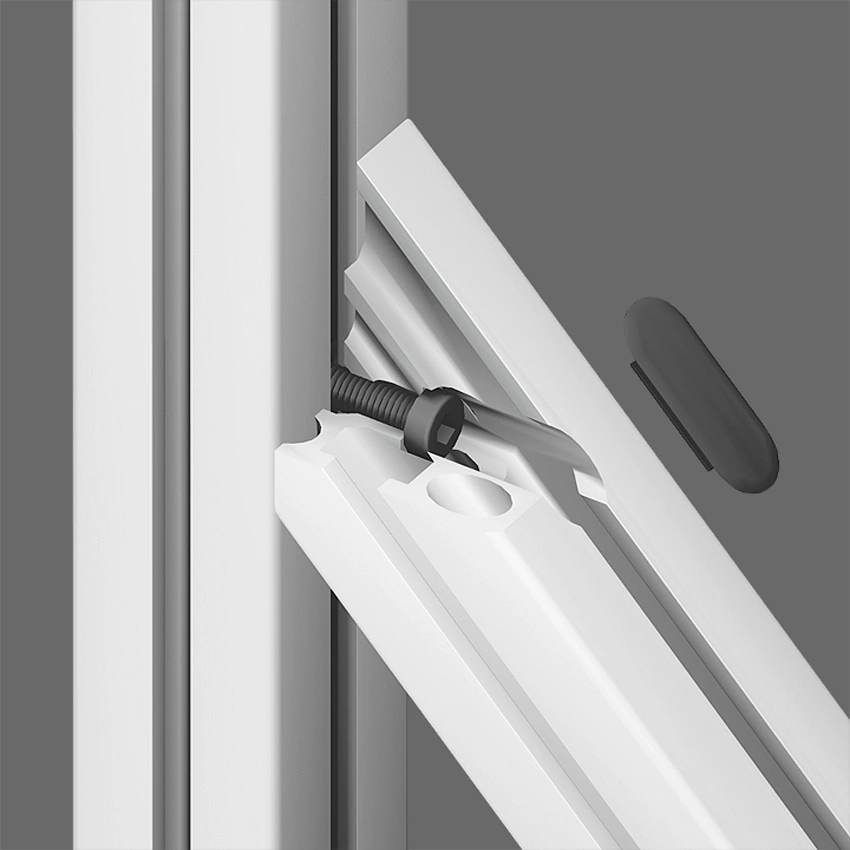

- Screw on the profile groove of the frame construction with supplied hardware
