Strengthening element 90
Reinforcement of profiled superstructures according to the principle of truss construction
£49.19 + VAT

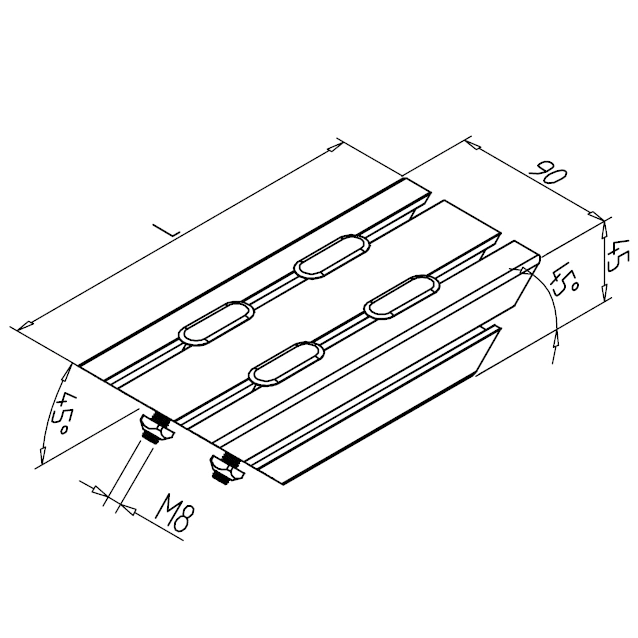

Technical Data
- Aluminium, anodized E6/EV1
- Length (l) : 360 mm
- Profile 45 x 90, ready for use
- Both ends cut at 45° with 4 counter-bores for fastening kit
- With fastening material steel, zinc plated
- Other lengths and designs under part no. 21.1762/5 on request
- Weight = 1.416 kg/piece
Applications

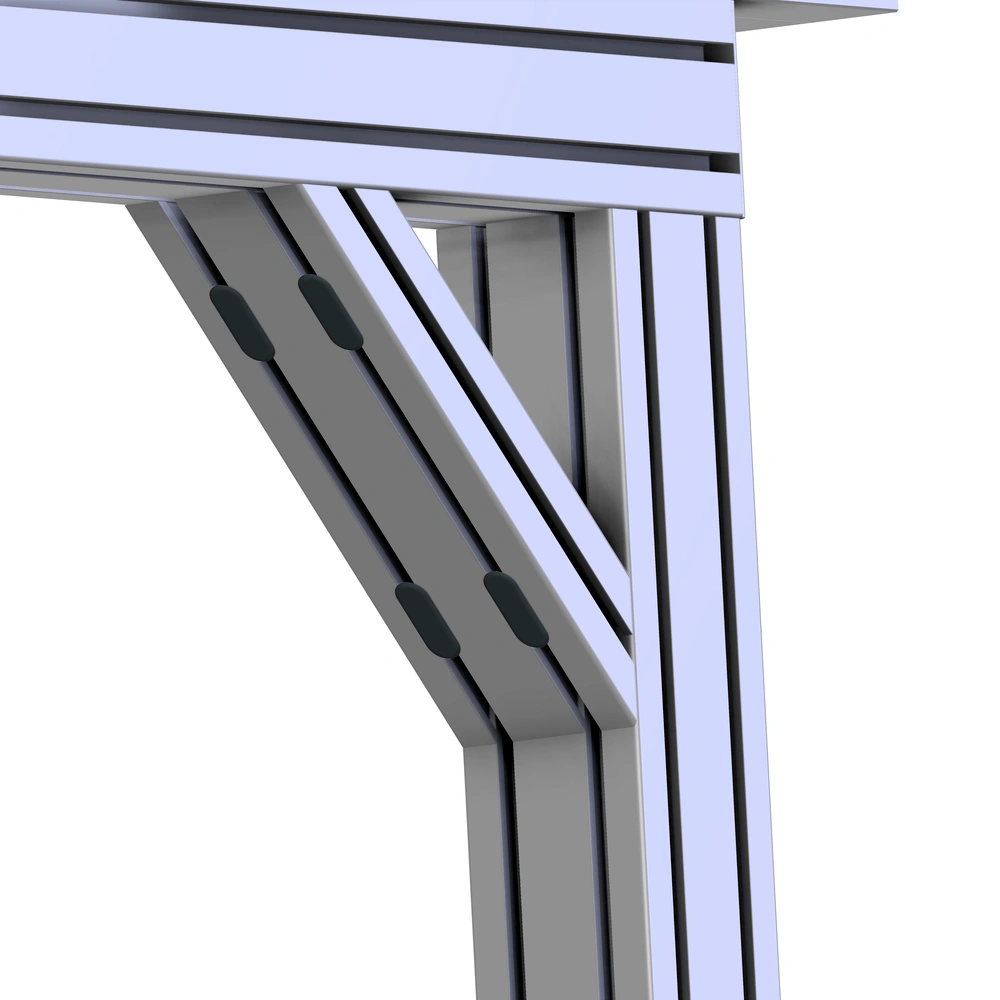

- Reinforcement of profiled superstructures according to the principle of truss construction
Assembly

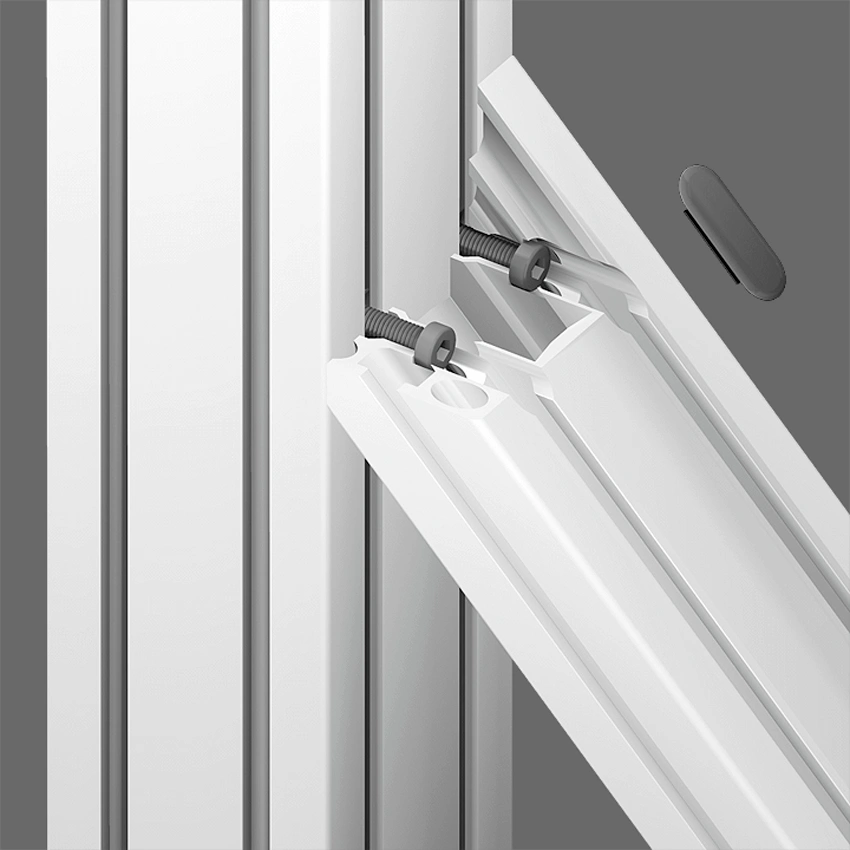

- Screw on the profile groove of the frame construction with supplied hardware
