T-head bolt

SKU 21.1370/0 Category Connecting Elements

Simple attachment of add-on parts or accessories on profiles. Recommended nut: Hexagon nut self-locking with flange part no. 21.1334/0

£0.97 + VAT

T-head bolt

T-head bolt - Image 2

T-head bolt - Image 3

Technical Data

Steel, galvanized
Thread (d) : M 8
Length (l) : 23.5 mm
Weight = 0.013 kg/piece

Applications

Simple attachment of add-on parts or accessories on profiles

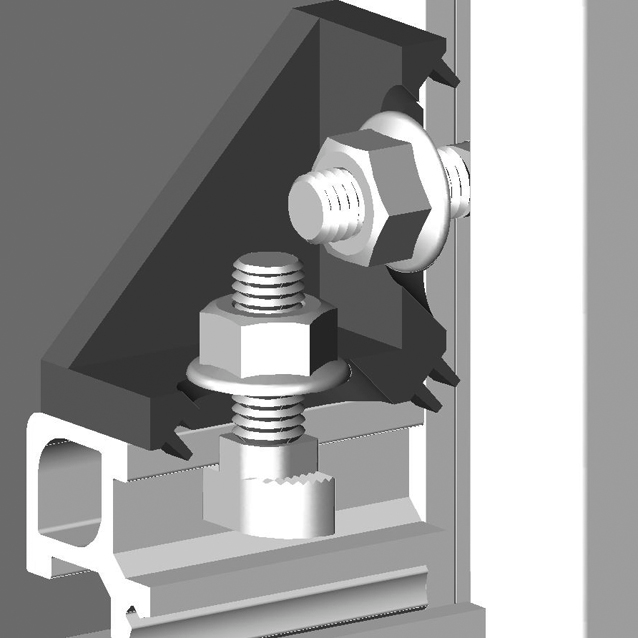

Attachment of mounting angle: 45 x 90 GD-Z part no. 21.1397/0, 45 GD part no. 21.1133/0, 45 GD-Z part no. 21.1349/0, 90 GD-Z partno. 21.0978/0

Assembly

Insert the hammer screw in the profile groove, screw on nut M8
When tightening the nut, the hammer head will turn crosswise
Recommended nut: Hexagon nut self-locking with flange part no. 21.1334/0
