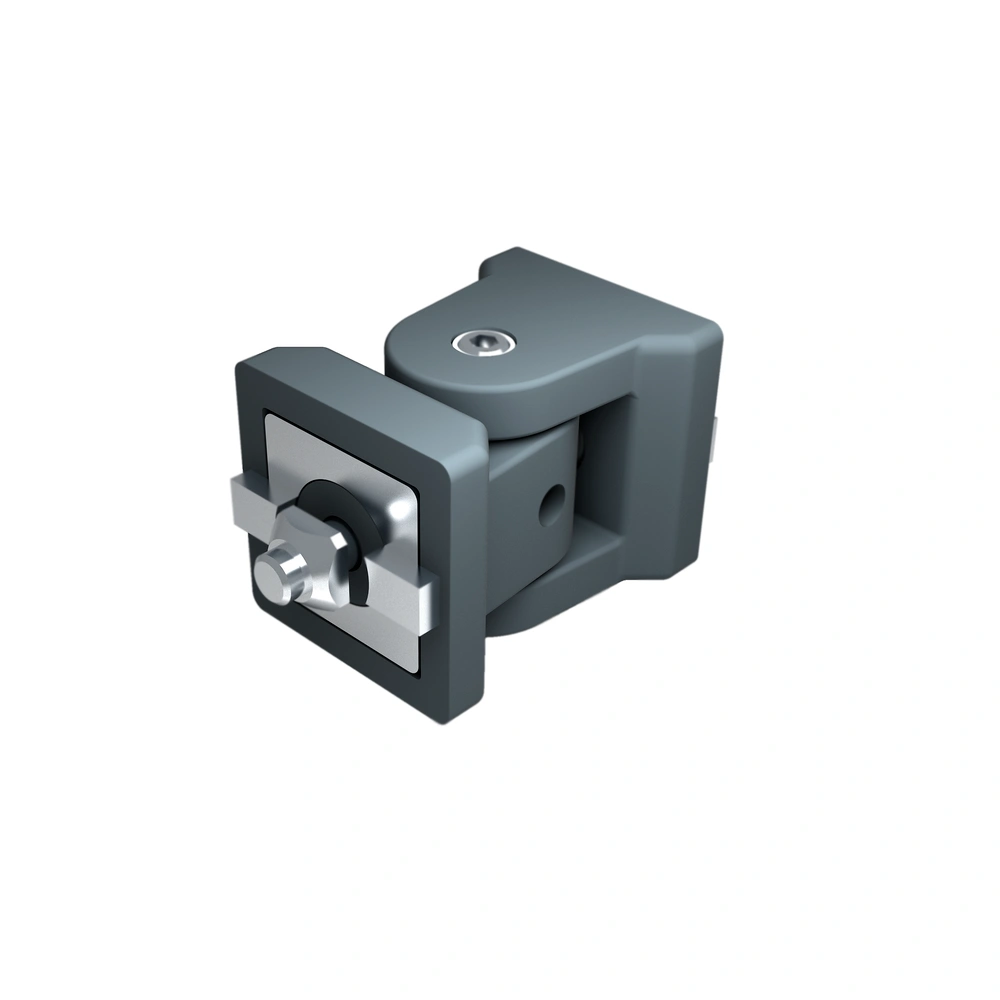

Swivel link 45
Use for heavy duty swing doors, storage of moving parts
£21.31 + VAT
Technical Data
- Aluminium, Pressure die-casting, powder-coated, grey
- With fastening material steel, zinc plated
- With low-friction sliding bearing
- Anti-rotation device AL GD
- Load Fmax 1500 N
- For use on vertical struts, swivel link part no. 21.2020/7 (square nuts with position fixing)
- Weight = 0.240 kg/piece
Applications
- Heavy duty swing doors, storage of moving parts
- Not lockable
- For heavy loads use multiple hinges

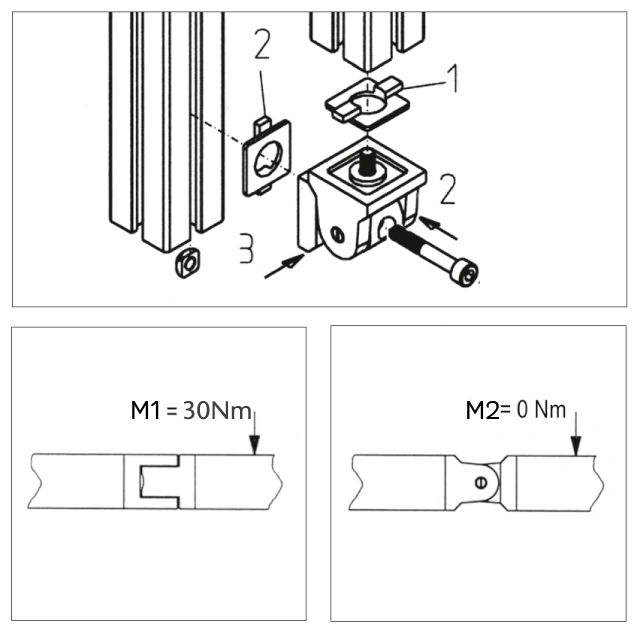

Assembly
- 1: Joint half with pre-mounted screw to desired position fasten
- 2. Insert screw from items included and fix link half 2 (to do so, swing movable side by approx. 90°, do not undo hinge pins!)
