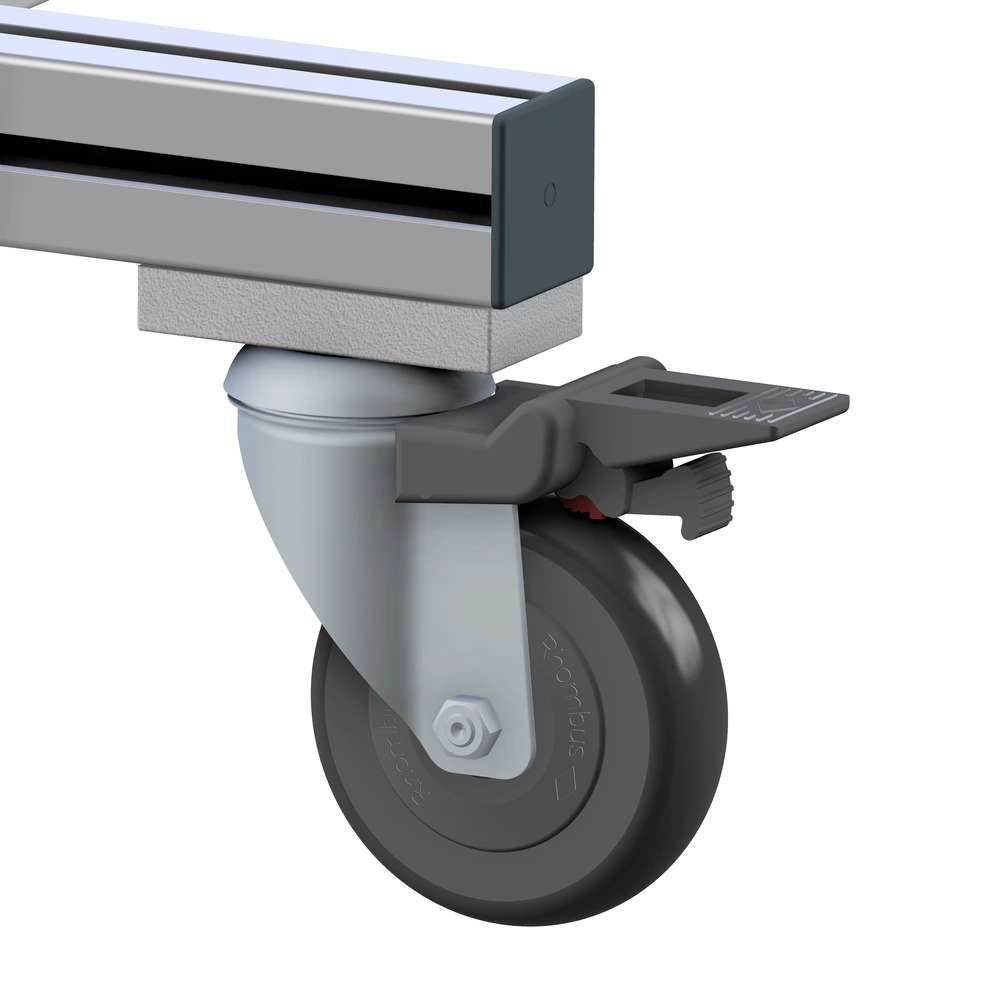

Swivel castor with brake D100 x 131

SKU 21.0031/0 Category Feet and Support

Movable tables, work stations and showcases with our swivel castors

£23.76 + VAT

Swivel castor with brake D100 x 131

Swivel castor with brake D100 x 131 - Image 2

Swivel castor with brake D100 x 131 - Image 3

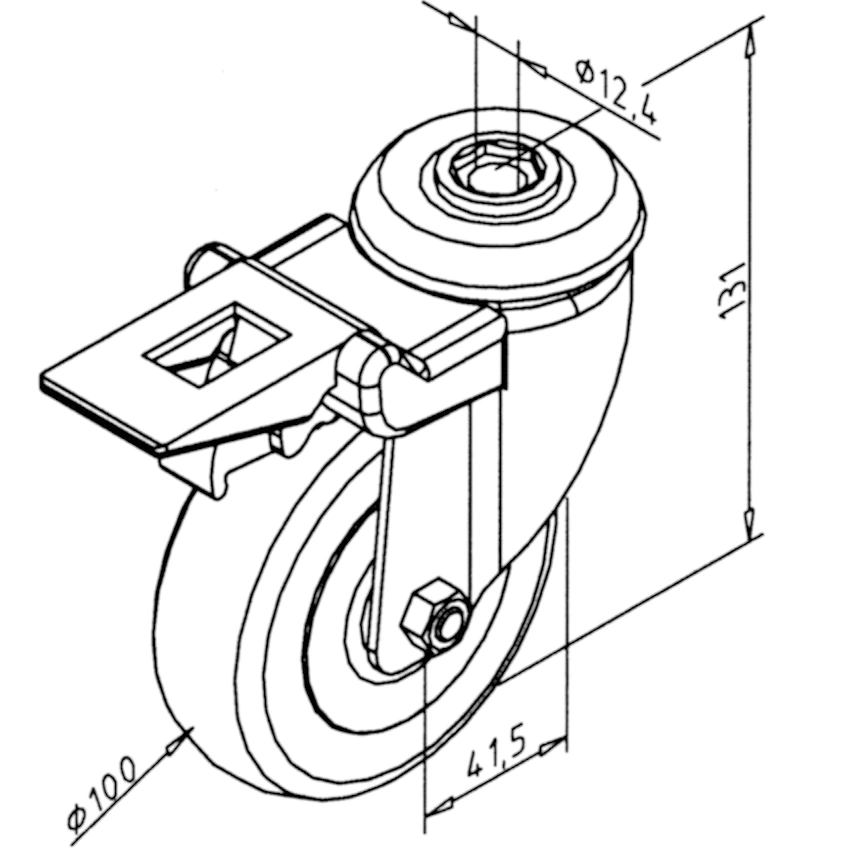

Technical Data

Steel, galvanized
Tire, rubber, grey
With fastening material steel, zinc plated
Load capacity 100 kg
Other versions upon request
Weight = 0.743 kg/piece

Applications

Movable tables
Work stands
Display windows, showcases

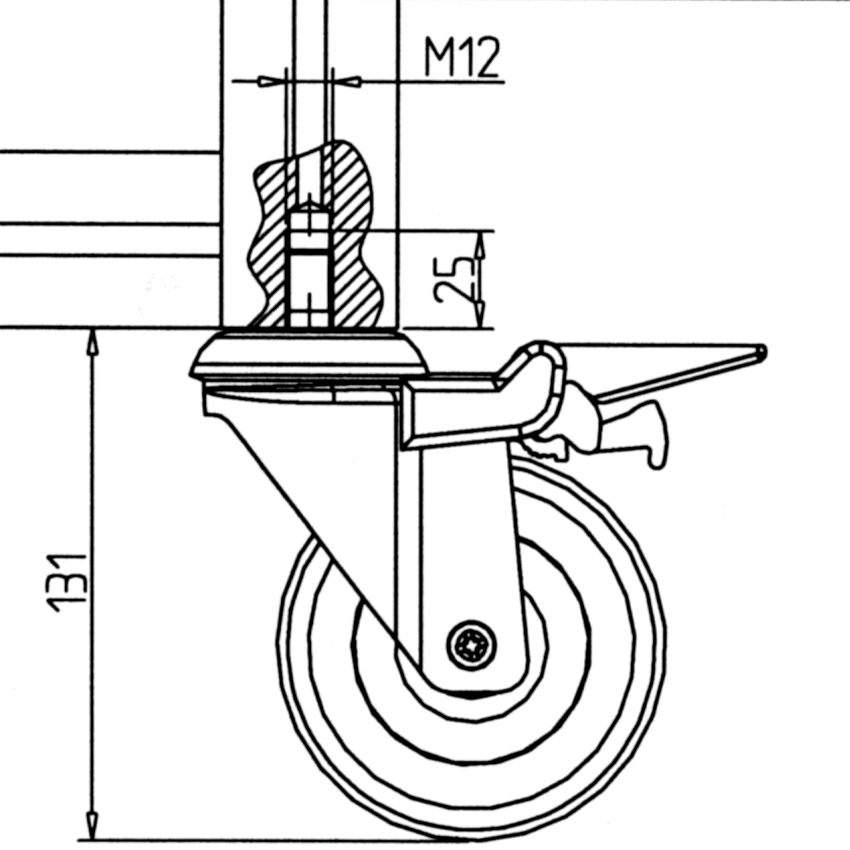

Assembly

Connect directly to the central bore of the vertical profile with supplied hardware, drill and introduce thread M12
If the roller is to be centrally positioned for profile cross sections of 45 x 90 or 90 x 90, a connection plate is required
