Screw block 23

SKU 22.1255/0 Category Clamping & screw blocks

Supplied individually

£2.87 + VAT

Screw block 23

Screw block 23 - Image 2

Screw block 23 - Image 3

Technical Data

ABS, Injection Mould, grey
Nut M6, steel, zinc-plated
Also available with thread dimensions M4/M5
Weight = 0.011 kg/piece

Applications

Suitable for all profiles of series 30
Retrofitting surface elements 2 mm to 6 mm thickness
Circulating air gap 7 mm

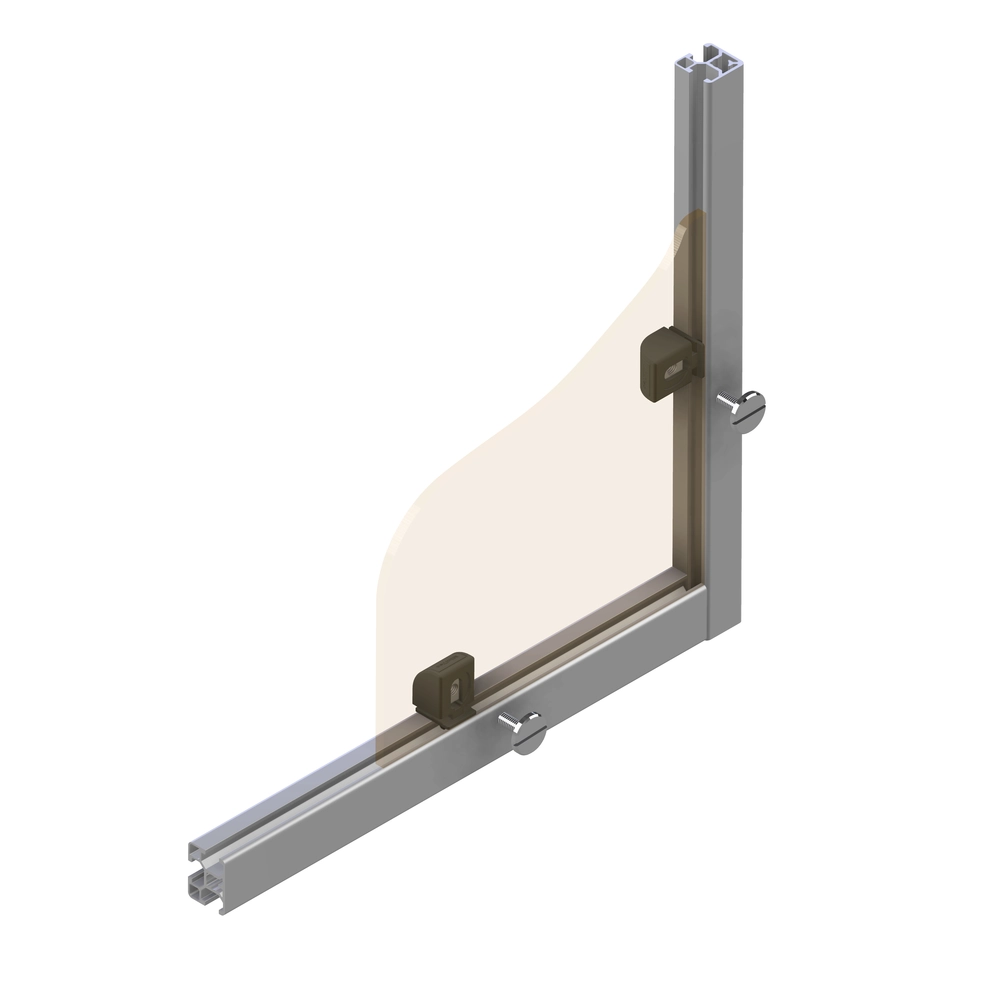

Assembly

Insert socket into profile groove
Insert bored surface elements
Screw down the surface elements
Recommended flat head screw M6x12 part no. 21.2074/0 up to 3 mm disc thickness or M6x16 part no. 21.1246/0 for greater strengths
