Rotary lock 30
Fasten to profile groove with supplied hardware. Fastening on profile groove – without processing/boring of profiles
£42.61 + VAT
Technical Data
- With fastening material steel, zinc plated
- Mounted handle: see part no. 21.2305/0
- Fmax. 2200 N
- Weight = 0.476 kg/piece
Applications

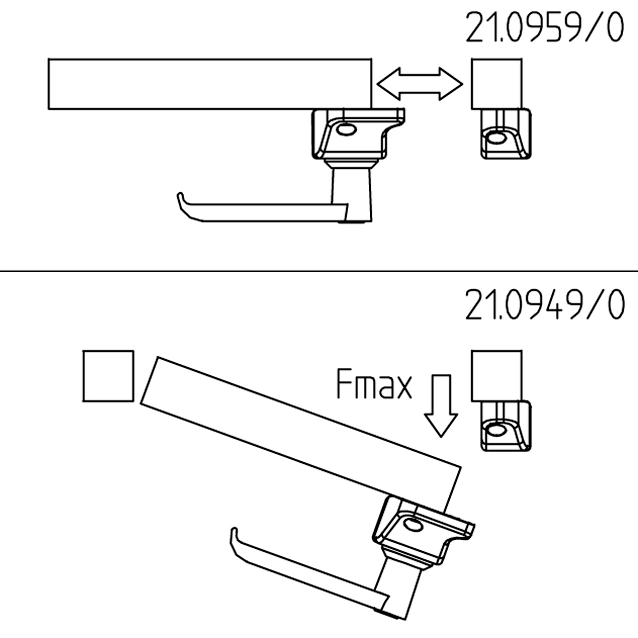

- Rotary lock 45 for swivel doors: part no. 21.0948/0
- Sliding door lock 45 for sliding doors part no. 21.0958/0
- Locking of doors and panels
- No profile finishing required
- Position moveable
Assembly
- Fasten to profile groove with supplied hardware
- Fastening on profile groove – without processing/boring of profiles
- No separate door stop required
