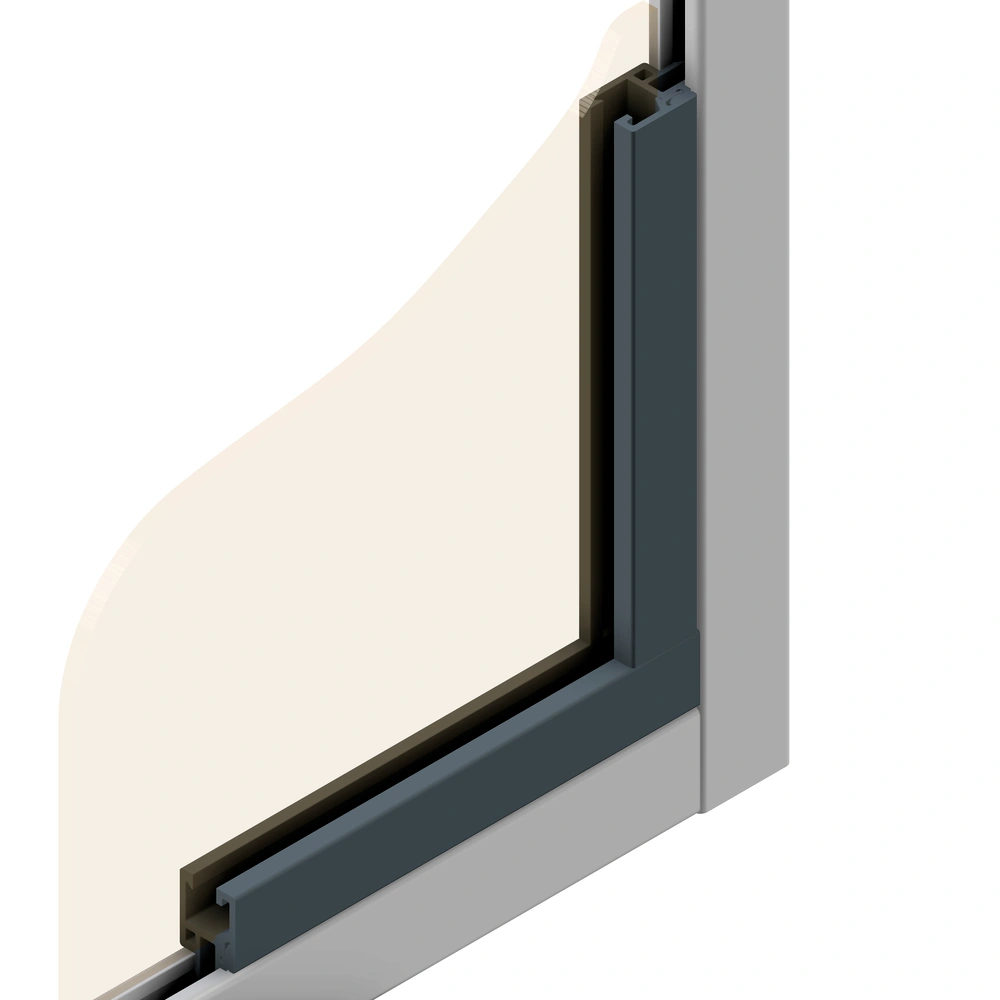

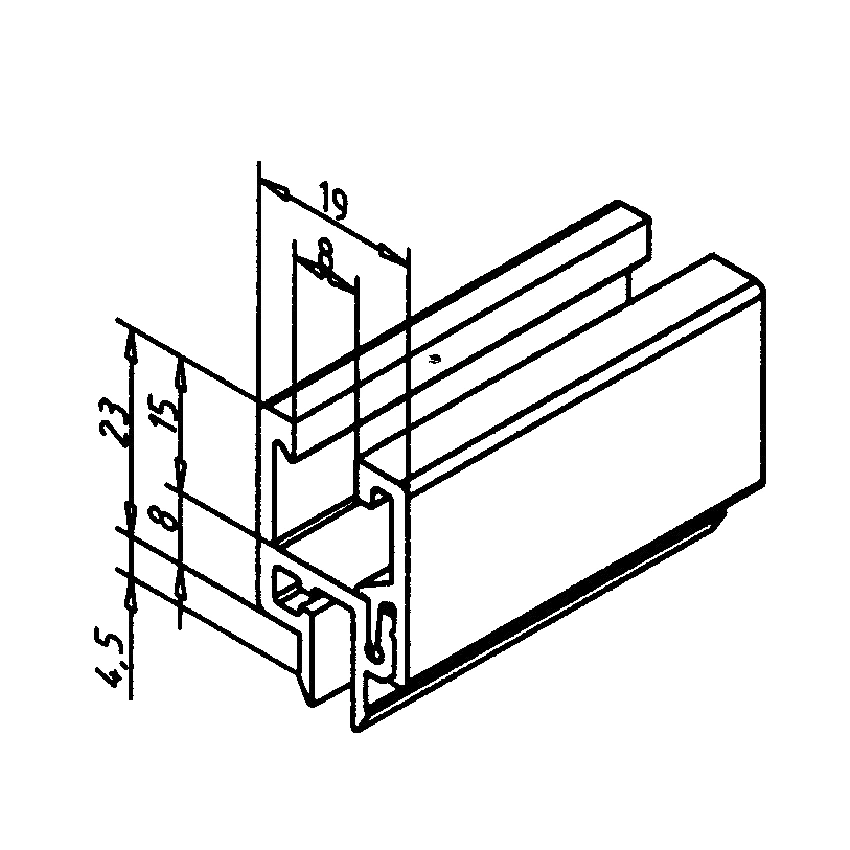

Panel clamping profile
£9.52 + VAT
Technical Data
- ABS, extruded, grey
- Weight = 0.229 kg/m
Applications
- For retrofitting surface elements in existing profile frames
- Fixation surface elements with a maximum strength of 8 mm
- For panels up to 8 mm use additional insert seal
- For subsequent installation of corrugated mesh please use clamp profile PVC
- Windows, doors
- No free space between profile and panel element
Assembly
- Snap socket half into profile groove
- Insert the panel element
- Press clamping half firmly on socket half
- No mitre cut necessary
