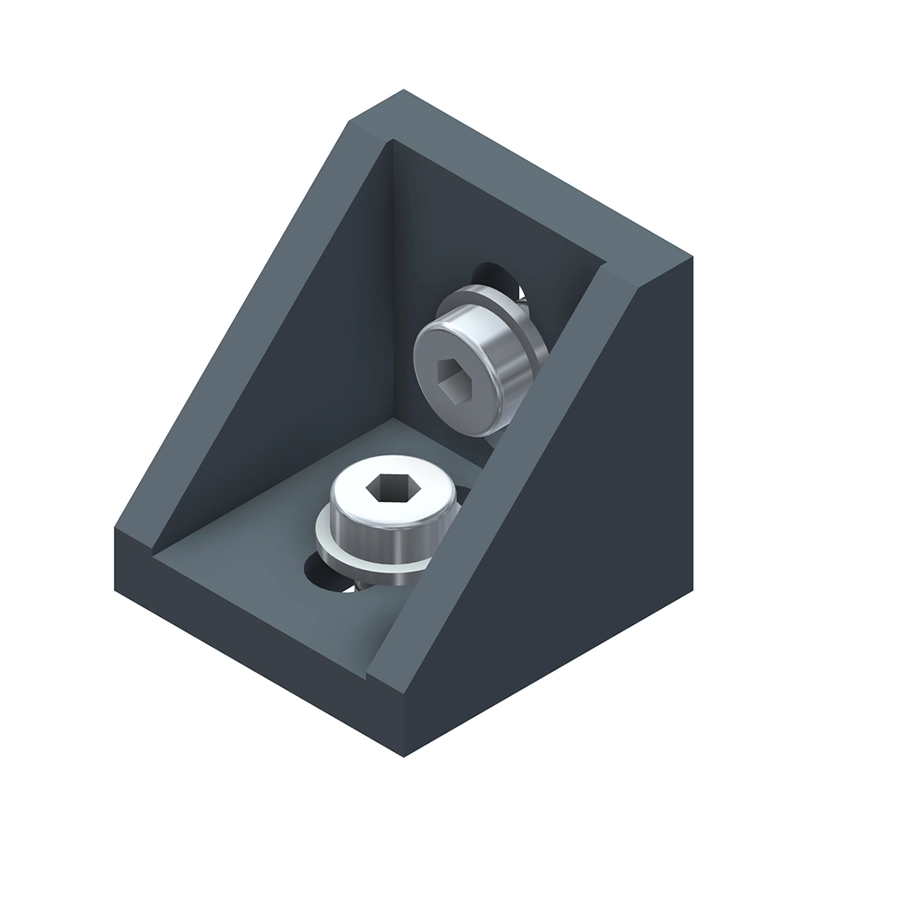

Mounting Bracket 45 GD

SKU N/A Categories Accessories, Mounting Angles and Brackets

Price range: £4.20 through £210.00 + VAT

Mounting Bracket 45 GD

Mounting Bracket 45 GD

Mounting Bracket 45 GD

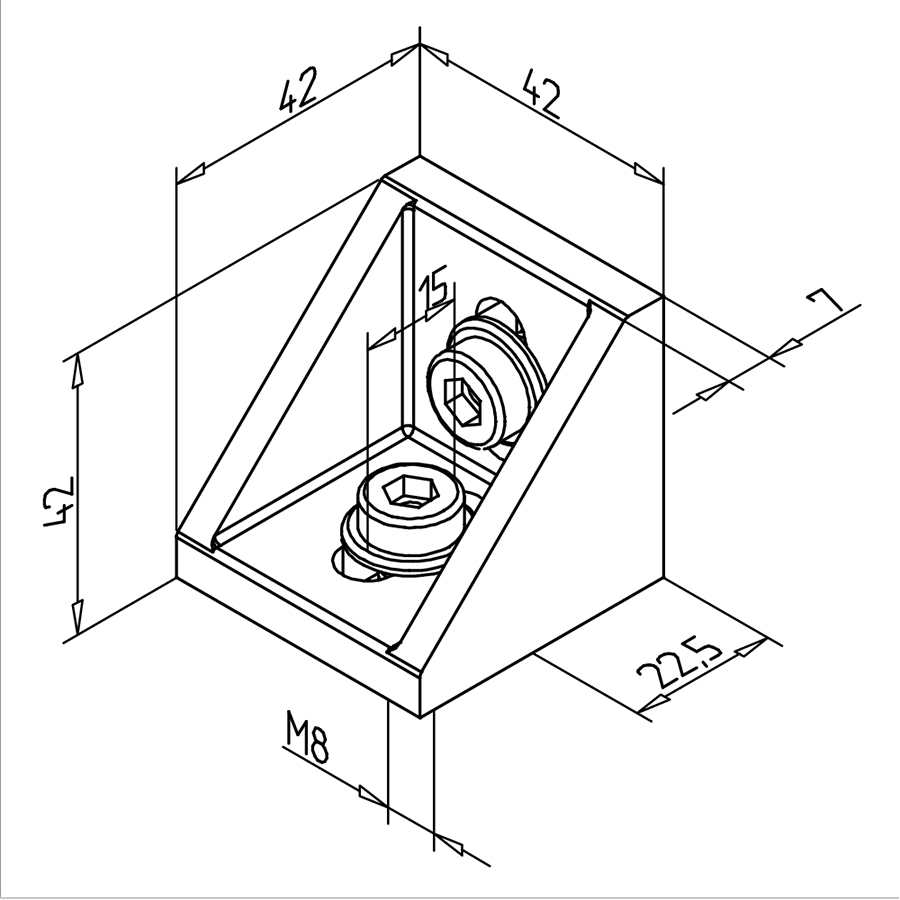

Technical Data

Die-cast aluminium, powder-coated, grey
With fastening material steel, galvanized
For use on vertical struts mounting bracket (sliding nuts with spring plate)
Weight = 0.114 kg/piece

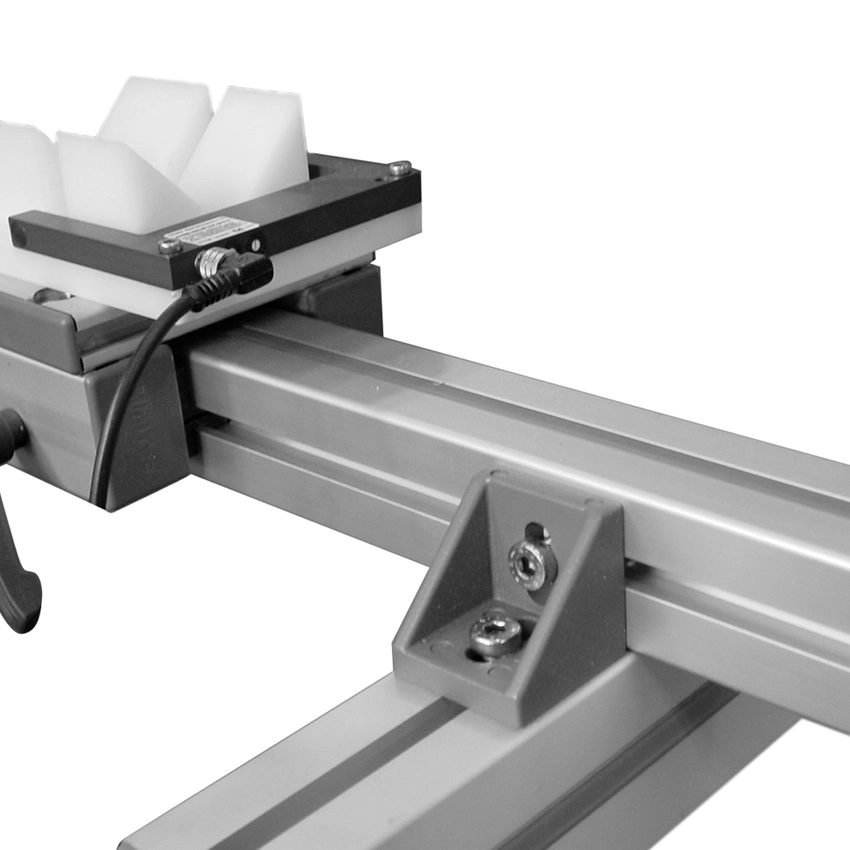

Applications

Constructions of all kinds, particularly suitable for the subsequent installation of elements into existing structures
Fastening of surface elements, table tops
Reinforcement of profile structures

Assembly

Attach to profile groove using fastening material included in delivery
Use of hammer screw possible
Recommended tightening torque: 20 Nm
