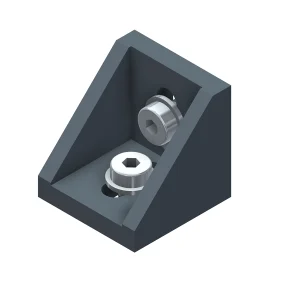

Mounting Angle 90×45 GD-Z
- Includes fixing kit
- Supplied in packs of 10 or 25
£77.10 – £182.91 + VAT
Technical Data
- Aluminium, Pressure die-casting, powder-coated, grey
- With fastening material steel, zinc plated
- Weight = 0.114 kg/piece
Applications
- General constructions, particularly for subsequent insertion of profiles into existing constructions
- Fastening of surface elements, tabletops
- Strengthening of profile constructions
Assembly
- Fasten to profile groove with supplied hardware
- Recommended locking torque: 20 Nm
