Mounting Angle 45 GD-Z

SKU 21.1349/0 Category Mounting Angles and Brackets

Includes fixing kit
Supplied in packs of 10 or 25

£34.40 – £85.85 + VAT

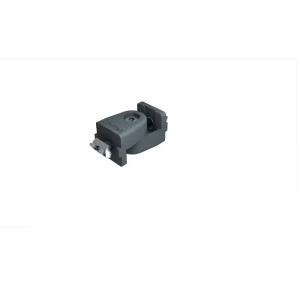

Mounting Angle 45 GD Incl. Fixing Kit

Mounting Angle 45 GD Diagram

Mounting Angle 45 GD Demonstration

Technical Data

Aluminium, Pressure die-casting, powder-coated, grey
With fastening material steel, zinc plated
Weight = 0.114 kg/piece

Applications

General constructions, particularly for subsequent insertion of profiles into existing constructions
Fastening of surface elements, tabletops
Strengthening of profile constructions

Assembly

Fasten to profile groove with supplied hardware
If non-aligning grooves, break centering tabs with pliers
Recommended locking torque: 20 Nm
