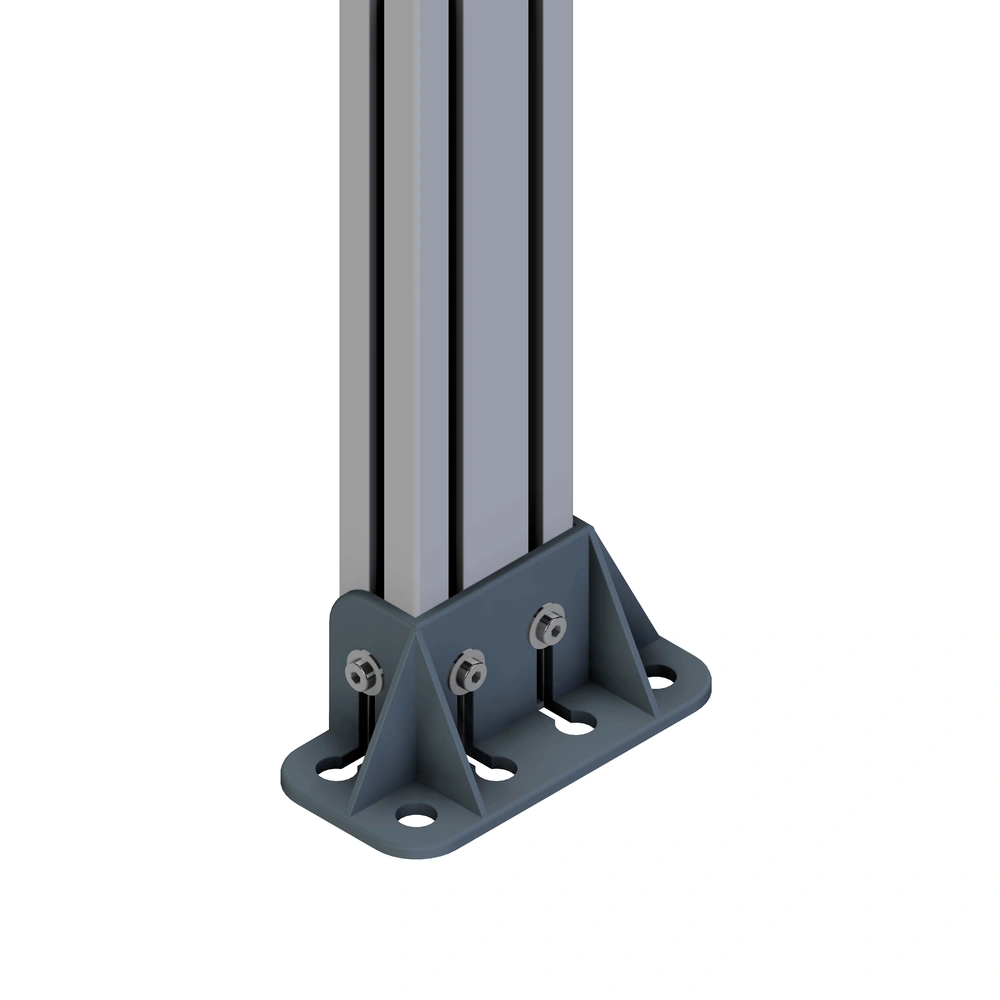

Foot 90 GD
Fitting for profiles with maximum dimension of 45 x 90, 90 x 90 and 90 x 180
£29.01 + VAT

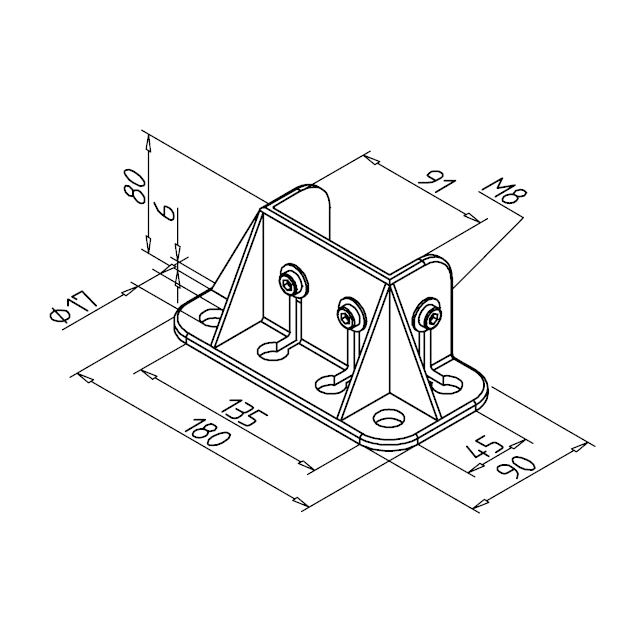

Technical Data
- Aluminium, Pressure die-casting, powder-coated, grey
- With galvanized steel fastening material, for profile
- Package size of 10 pieces part no.. 21.1737/010
- Weight = 0.465 kg/piece
Applications
- Fitting for profiles with maximum dimension of 45 x 90, 90 x 90 and 90 x 180
- Floor fastening of guard units, signboards, racks

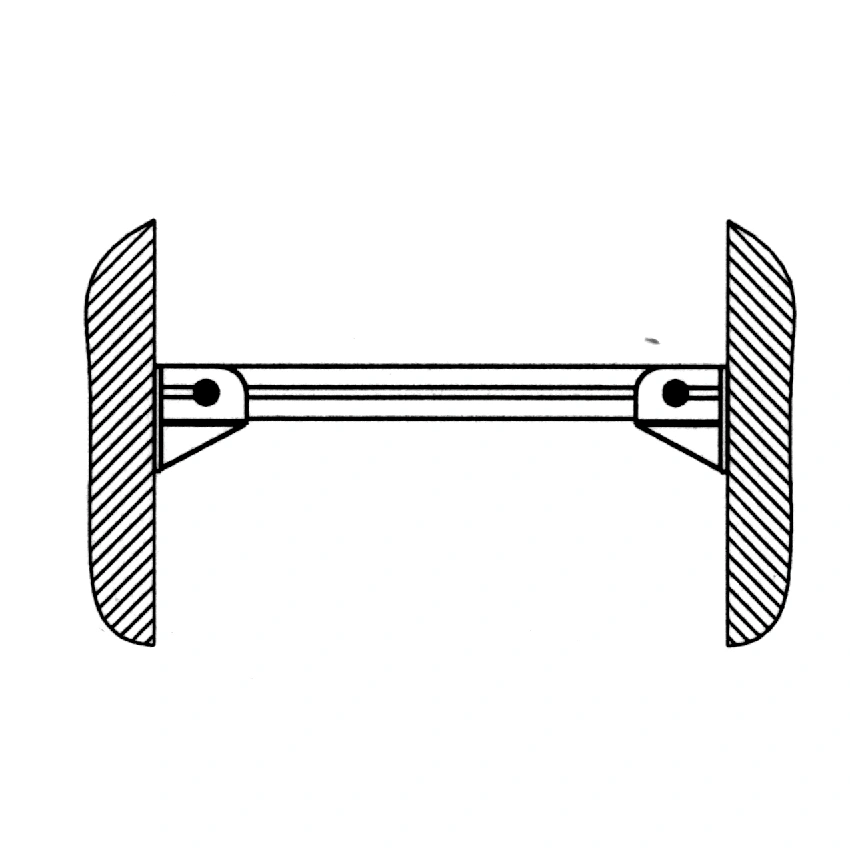

- As connection element for wall attachment; can be used both-sided
Assembly
- Insert profile into foot
- Insert the square nut with spring steel sheet into the profile groove; preassemble the screws
- Fix the foot on the floor or the wall; use the floor anchors or the universal plugs with a hexagonal head screw
- Tighten fastening screws
