End cap 90×90 alu

SKU 22.1008/2 Category End Caps

£8.34 + VAT

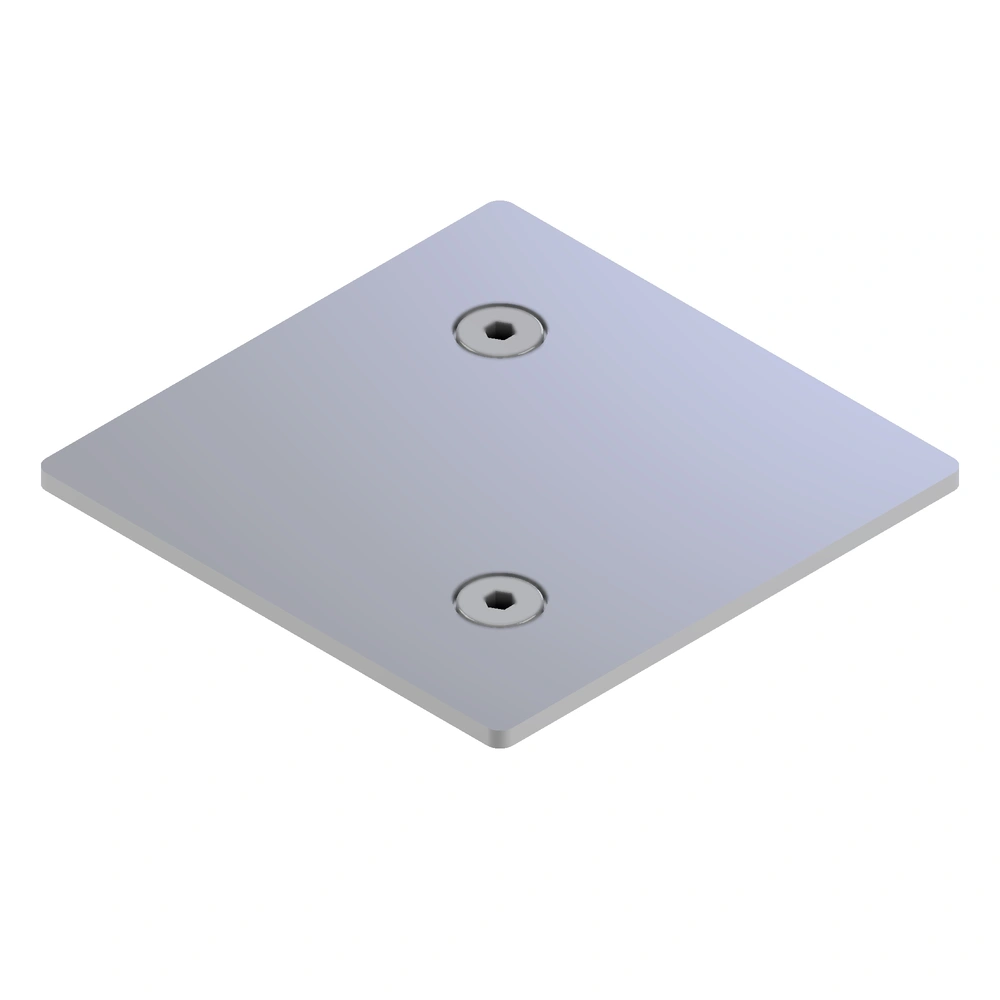

End cap 90x90 alu

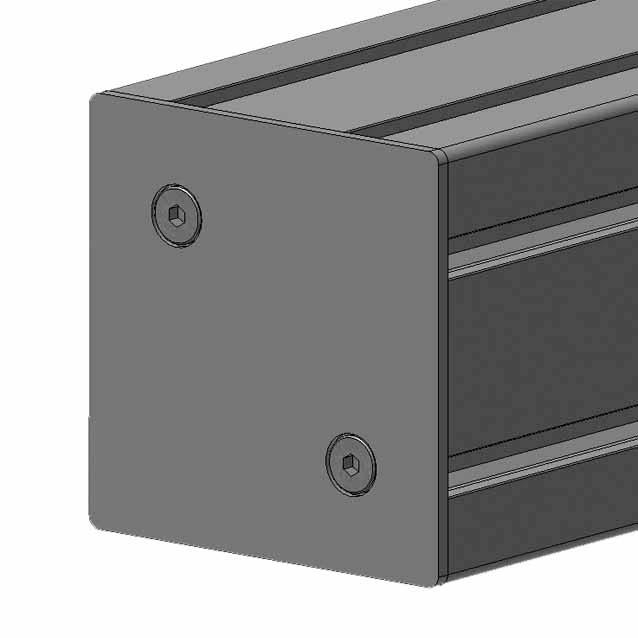

End cap 90x90 alu - Image 2

End cap 90x90 alu - Image 3

Technical Data

Aluminium, anodized E6/EV1
Supplied with pan head screws M8
Weight = 0.072 kg/piece

Applications

Mouth-side covering of profile ends of profile series 45
Use at higher temperatures, chemically aggressive substances

Assembly

Insert and screw on two thread M8 into the central hole in the end face of the profile
