End cap 45×45 alu

SKU 22.1067/2 Category End Caps

£4.40 + VAT

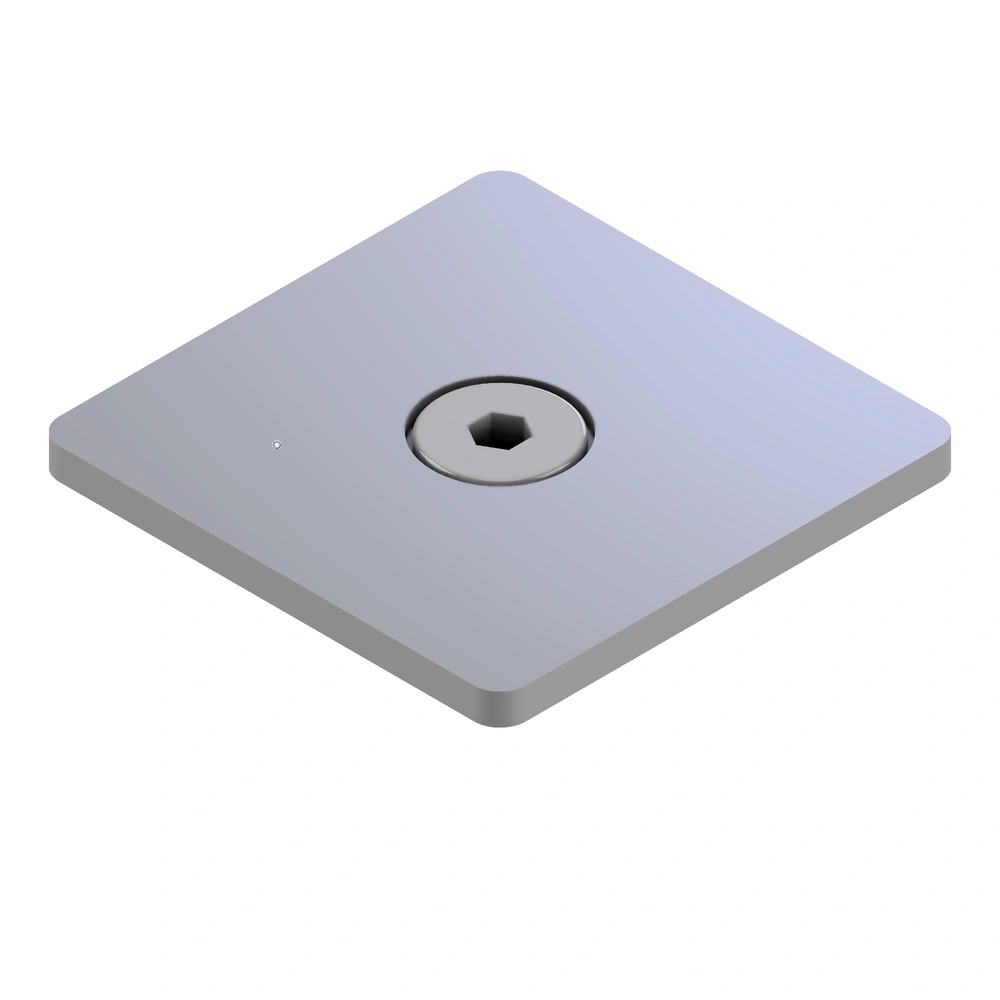

End cap 45x45 alu

End cap 45x45 alu - Image 2

End cap 45x45 alu - Image 3

Technical Data

Aluminium, anodised E6/EV1
supplied with pan head screw M8
Weight = 0.019 kg/piece

Applications

Mouth-side covering of profile ends of profile series 45
Use at higher temperatures, chemically aggressive substances

Assembly

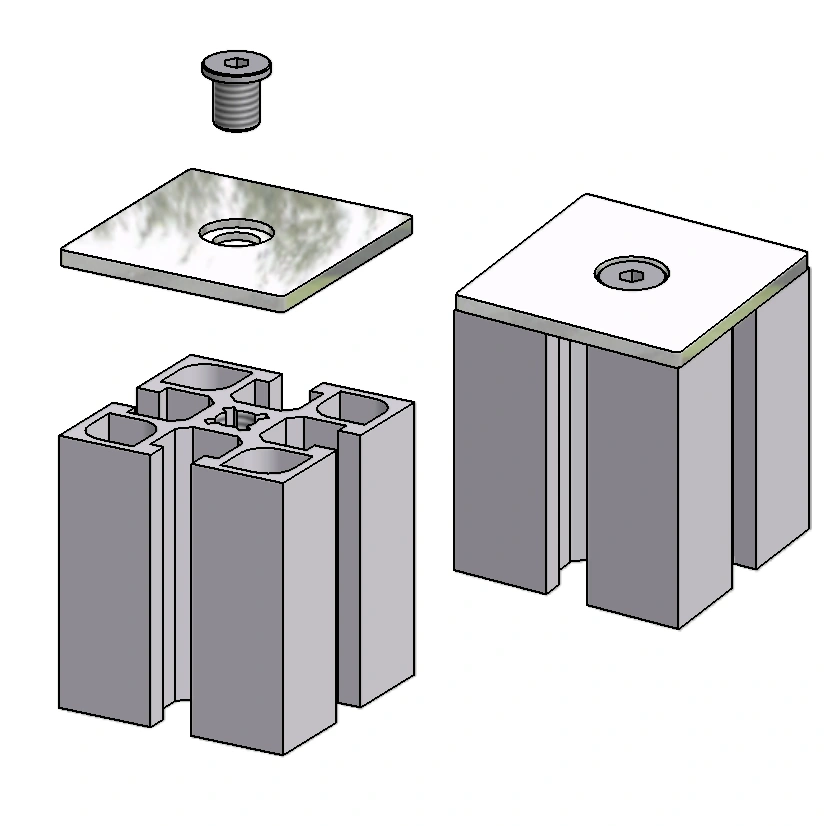

Insert and screw on the thread M8 into the central hole in the end face of the profile
