Cross-connector 45
For connecting all profiles of the profile series 45. Especially for retrofitting profiles into existing constructions
£5.88 + VAT

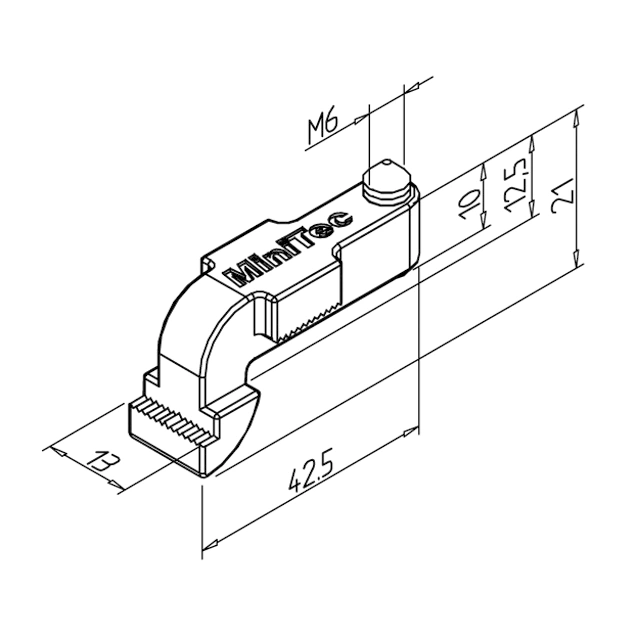

Technical Data
- Steel, galvanized
- Connection element with pre-assembled threaded pin M6
- Weight = 0.035 kg/piece
Applications
- For connecting all profiles of the profile series 45
- Especially for retrofitting profiles into existing constructions
- Appropriate for ESD implementations
Assembly

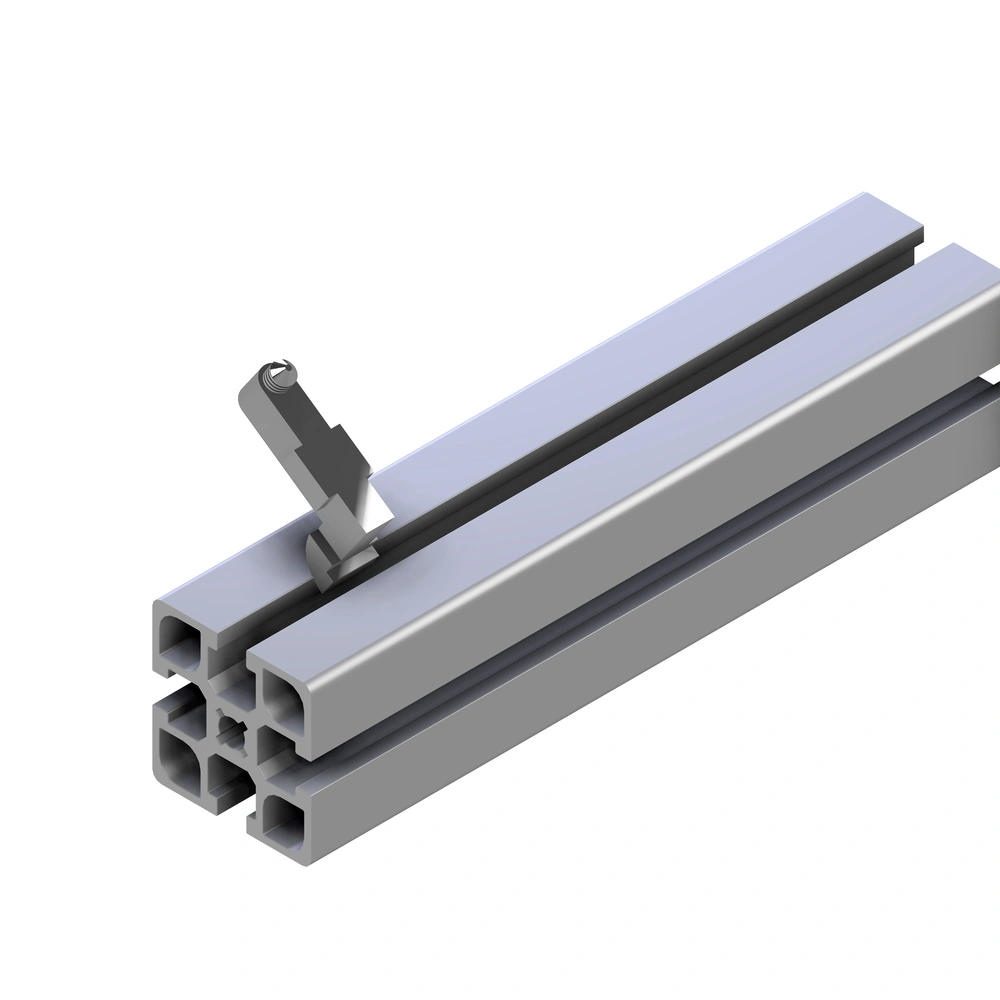

- Swing the connector into the existing frame
- Push the new profile over the connector
- Tighten set screw in connector with wrench size 3 to 10 Nm torque
