Cover for foot 90

SKU 22.1025/1 Category Feet and Support

£18.84 + VAT

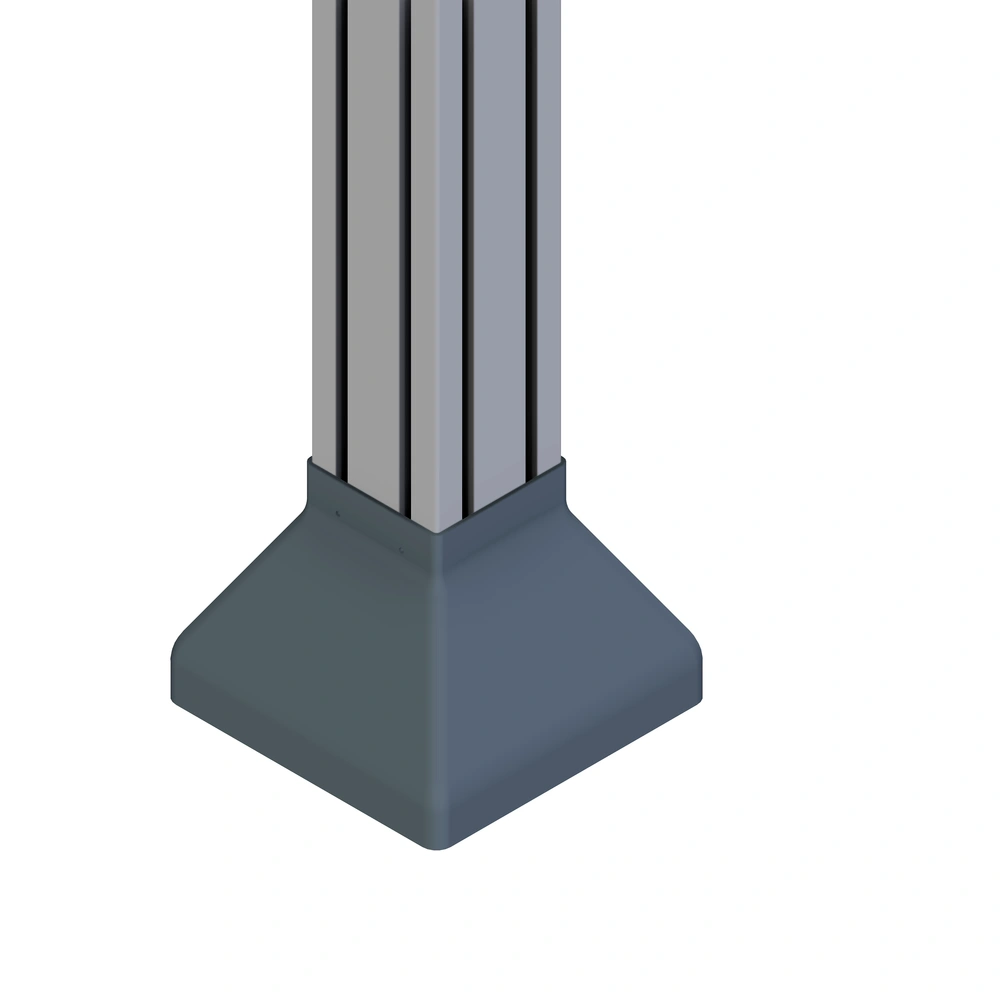

Cover for foot 90

Cover for foot 90 - Image 2

Cover for foot 90 - Image 3

Technical Data

ABS, grey
Weight = 0.131 kg/piece

Applications

Suitable for foot 90 GD and 90 S
Less dust and dirt deposit on the foot
Easy to clean

Assembly

Expand the cover manually and clip in the slots of the profile
Push the cover downwards
Fasten on the side with tapping screw 3.4 x 16, then drill hole Ø 2.5 mm at the marked location
