Clamp profile PVC
Sold in 1 metre lengths.
£9.59 + VAT
Technical Data
- PVC, extruded, grey
- On request also available in black, part no. 22.1080/0
- Weight = 0.550 kg/m
Applications
- Fixation surface elements with a maximum strength of 8 mm
- For surface elements smaller than 4 mm, a moss rubber strip must be inserted
- Windows, doors
- No free space between profile and panel element
- Also suitable for corrugated mesh

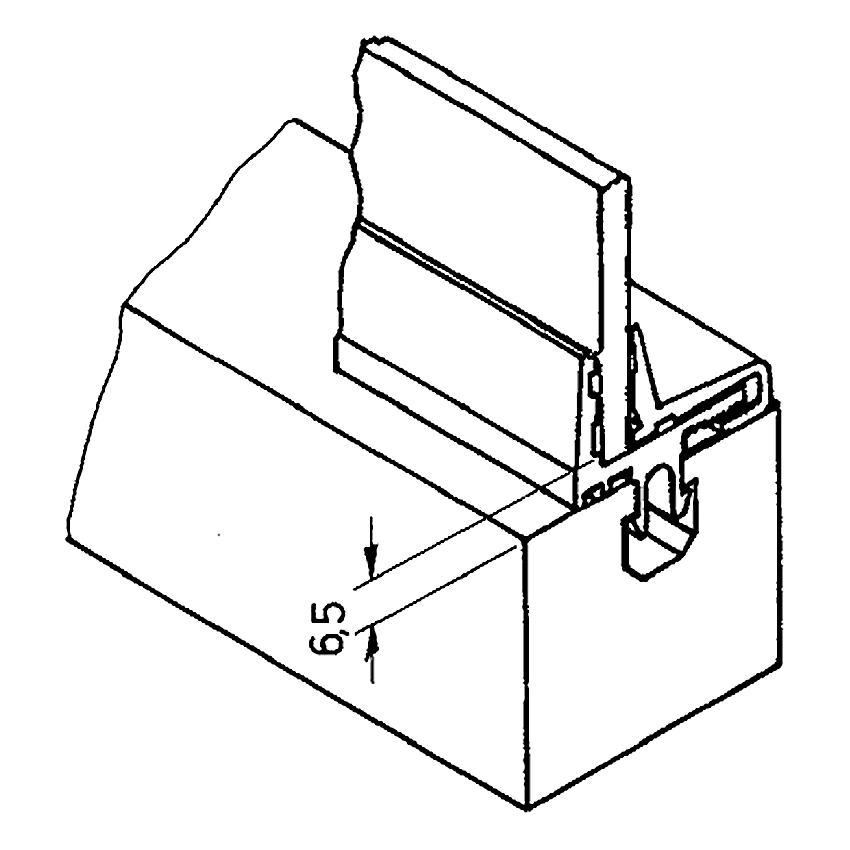

Assembly
- Snap socket half into profile groove
- Insert the panel element
- Press clamping half firmly on socket half
- To install surface elements less than 4 mm thick, the insertion of an additional sponge rubber strip or similar is recommended, e.g. our flat sponge rubber tape 10×3 mm, self-adhesive Part no.. 22.1129/0
