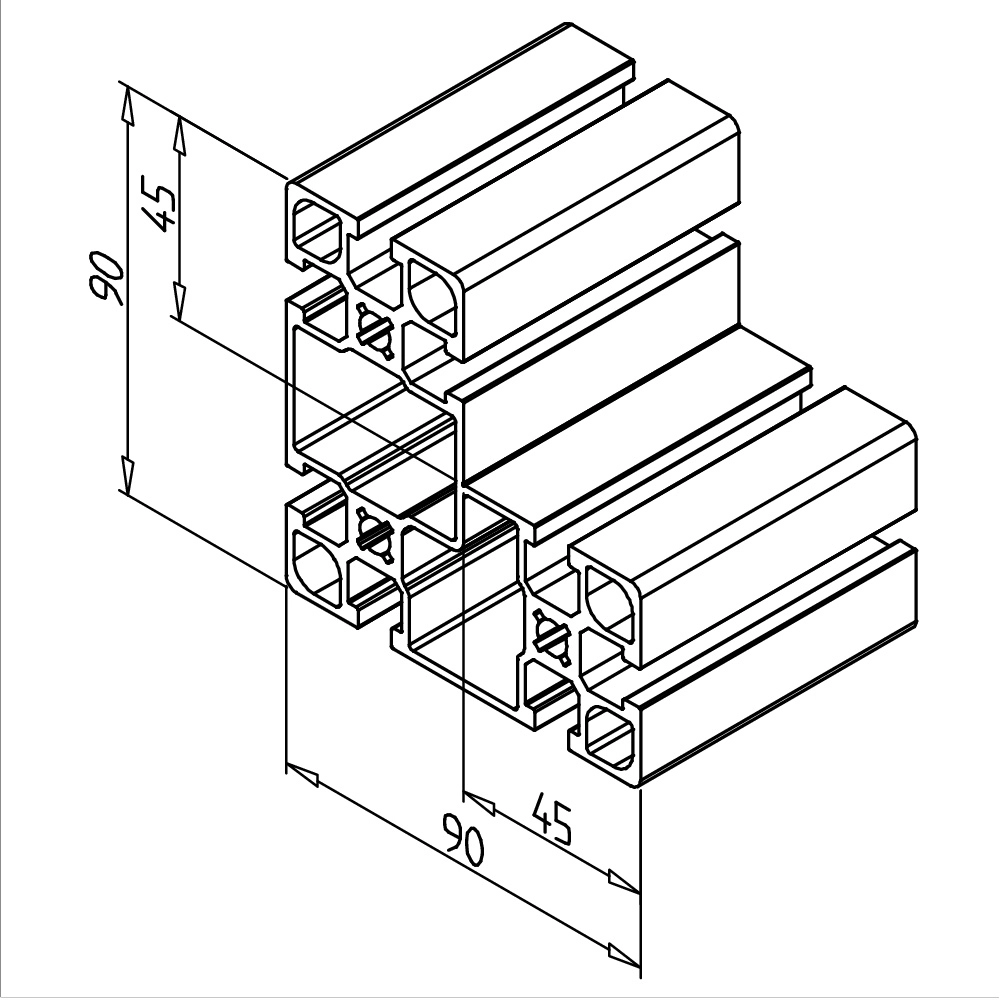

90 x 90 x 45 Profile
Please note; price per mm is £0.05935
A cutting fee of £2.50 per cut will be added in your basket. For lengths more than 2000 mm, please contact us.
£0.06 + VAT price per 1 mm
Technical Data
- Aluminium, extruded, anodised E6/EV1
- Ix = 127.588 cm4
- Iy = 127.459 cm4
- wx = 24.971 cm3
- wy = 24.895 cm3
- IT = 182.588 cm4
- Weight = 4.458 kg/m
- Bar length = 6 m
- Packing unit = 12 m
Applications
- All kinds of constructions
- Tables
- Display windows, showcases
- Framework constructions
- One chamber can be used to guide counterweight 45
Assembly
- MiniTec powerlock fastener
- Screw connection
- Mounting bracket 45 or 90

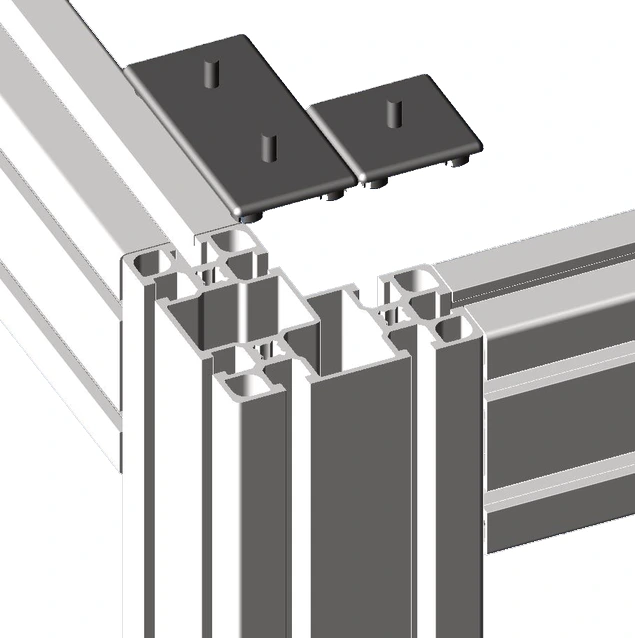

- Base and transport plate 90x90x45 part no. 21.2505/0
