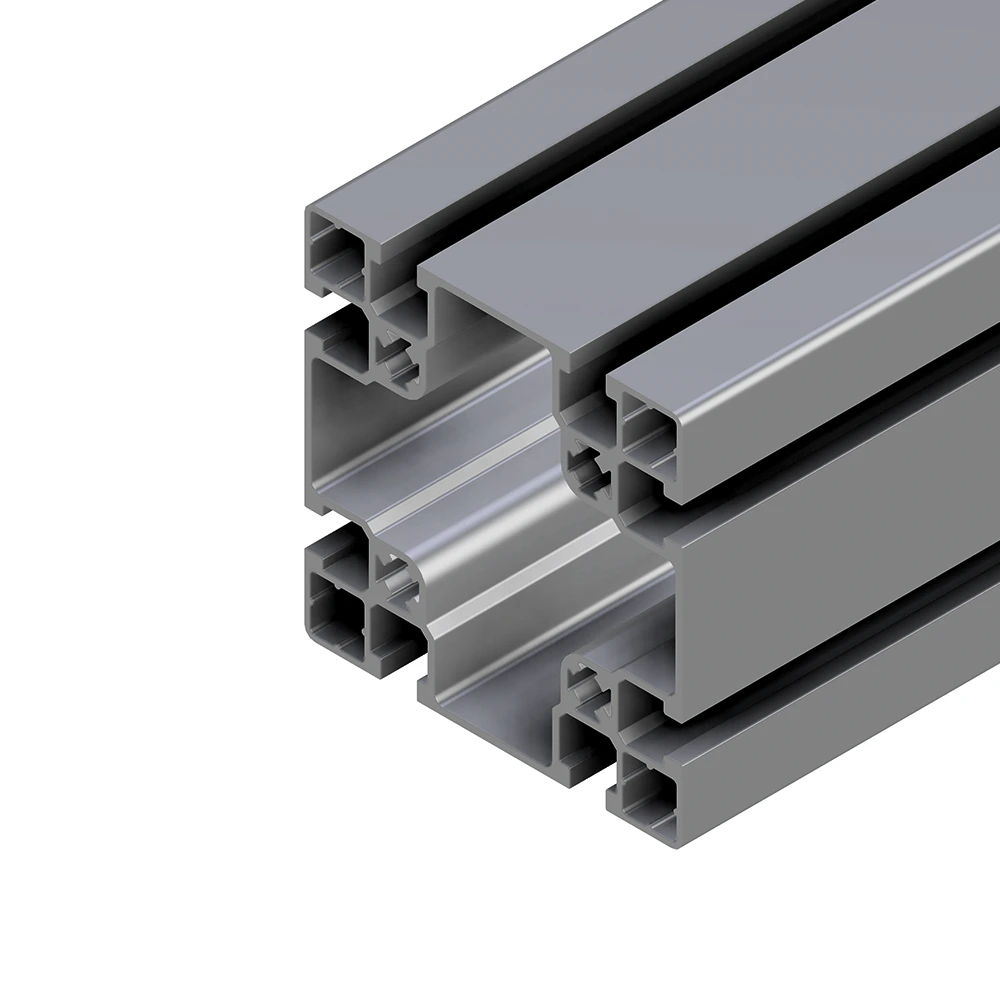

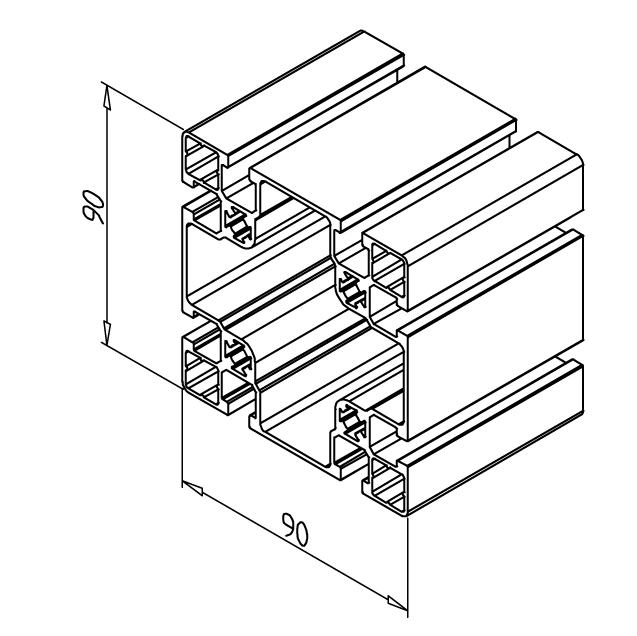

90 x 90 UL Profile
Please note; price per mm is £0.04758
A cutting fee of £2.50 per cut will be added in your basket. For lengths more than 2000 mm, please contact us.
£0.05 + VAT price per 1 mm
Technical Data
- Aluminium, extruded, anodised E6/EV1
- Ix = 132.001 cm4
- Iy = 132.001 cm4
- wx = 29.334 cm3
- wy = 29.334 cm3
- IT = 343.488 cm4
- Weight = 3.776 kg/m
- Bar length = 6 m
- Packing unit = 12 m
Applications
- Weight optimised constructions
- Guide in the central hollow chamber for internal balancing weight for lifting doors

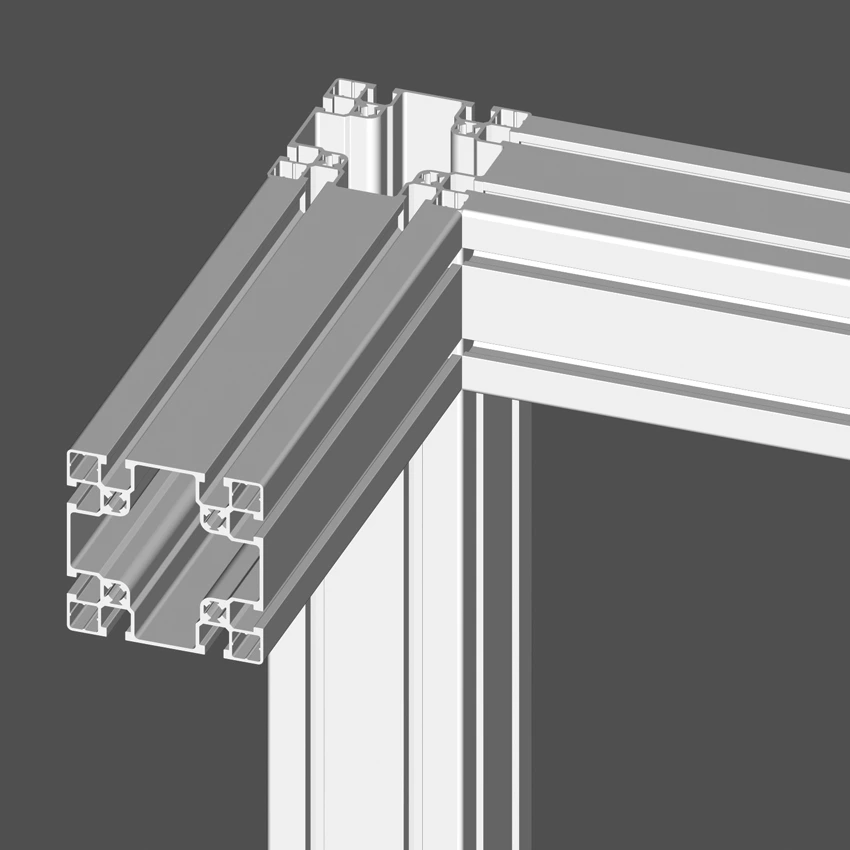

Assembly
- MiniTec powerlock fastener
- Mounting bracket 45 or 90
- Screw connection
- Bolt connector
