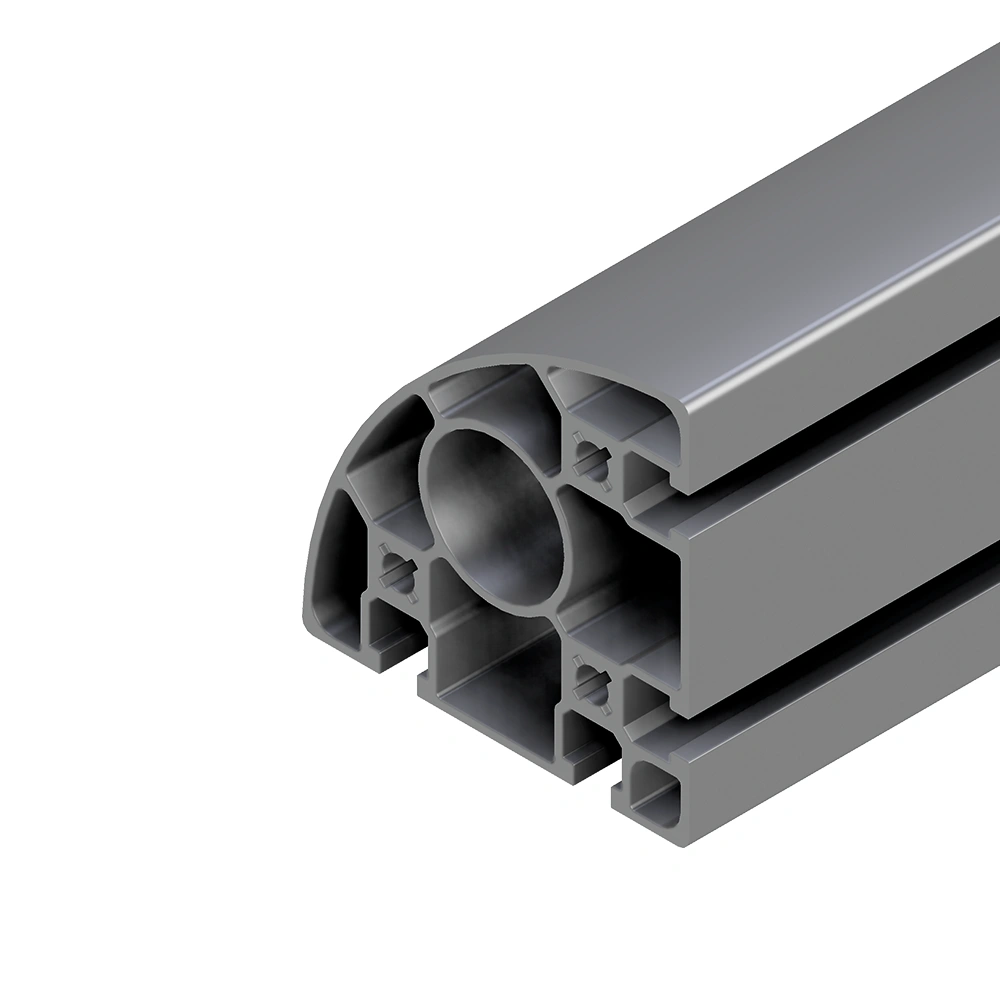

90 R 90° Profile
Please note; price per mm is £0.06489
A cutting fee of £2.50 per cut will be added in your basket. For lengths more than 2000 mm, please contact us.
£0.06 + VAT price per 1 mm

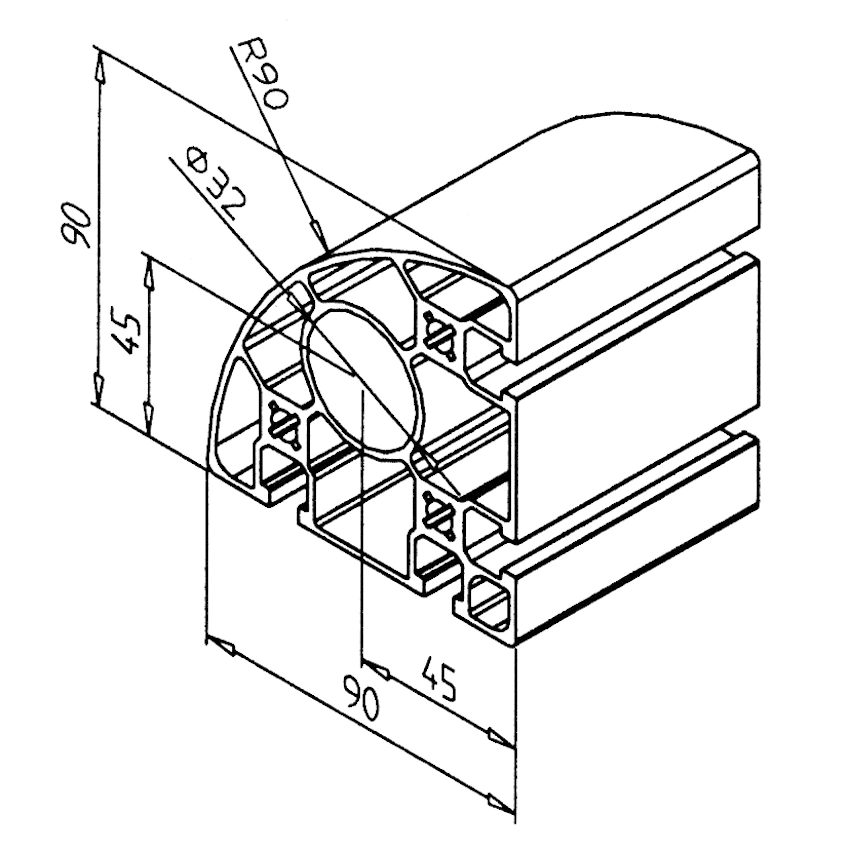

Technical Data
- Aluminium, extruded, anodised E6/EV1
- Ix = 113.389 cm4
- Iy = 113.389 cm4
- wx = 21.874 cm3
- wy = 21.874 cm3
- IT = 378.600 cm4
- Weight = 4.265 kg/m
- Bar length = 6 m
- Packing unit = 12 m
Applications
- Tables, frames
- All kinds of constructions
Assembly
- MiniTec powerlock fastener
- Angles
- Bolt connector
- End cap, part no. 22.0988/1
- Connecting plate M10 – M20

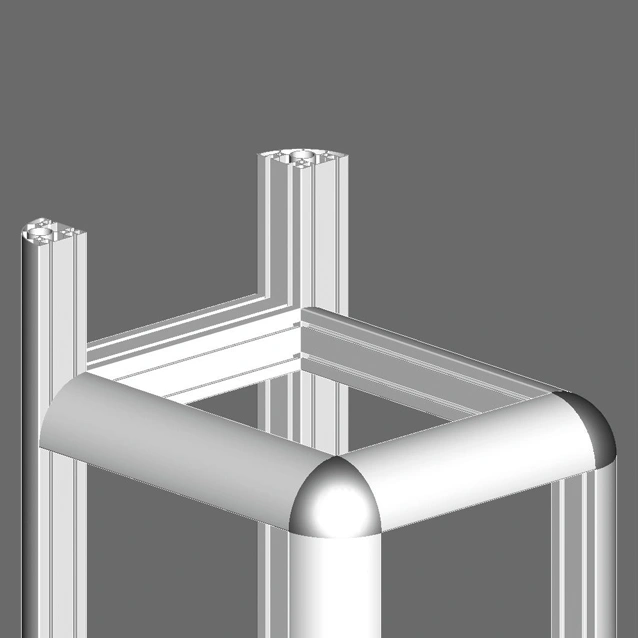

- Corner Connection 90 R 90°
