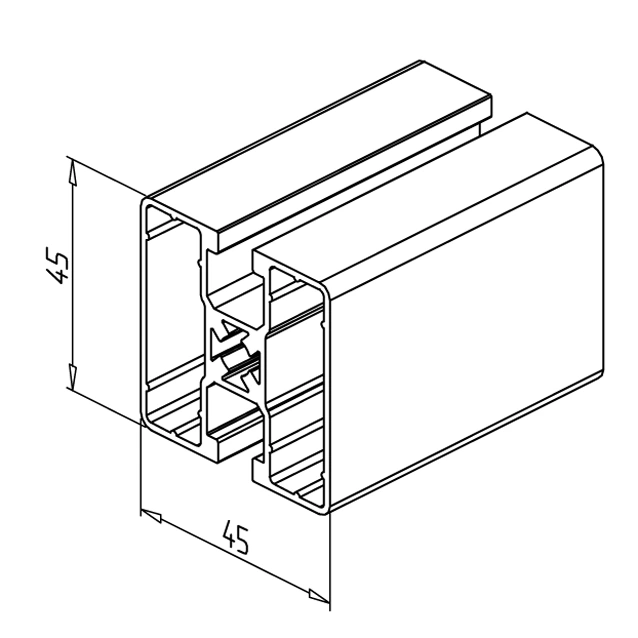

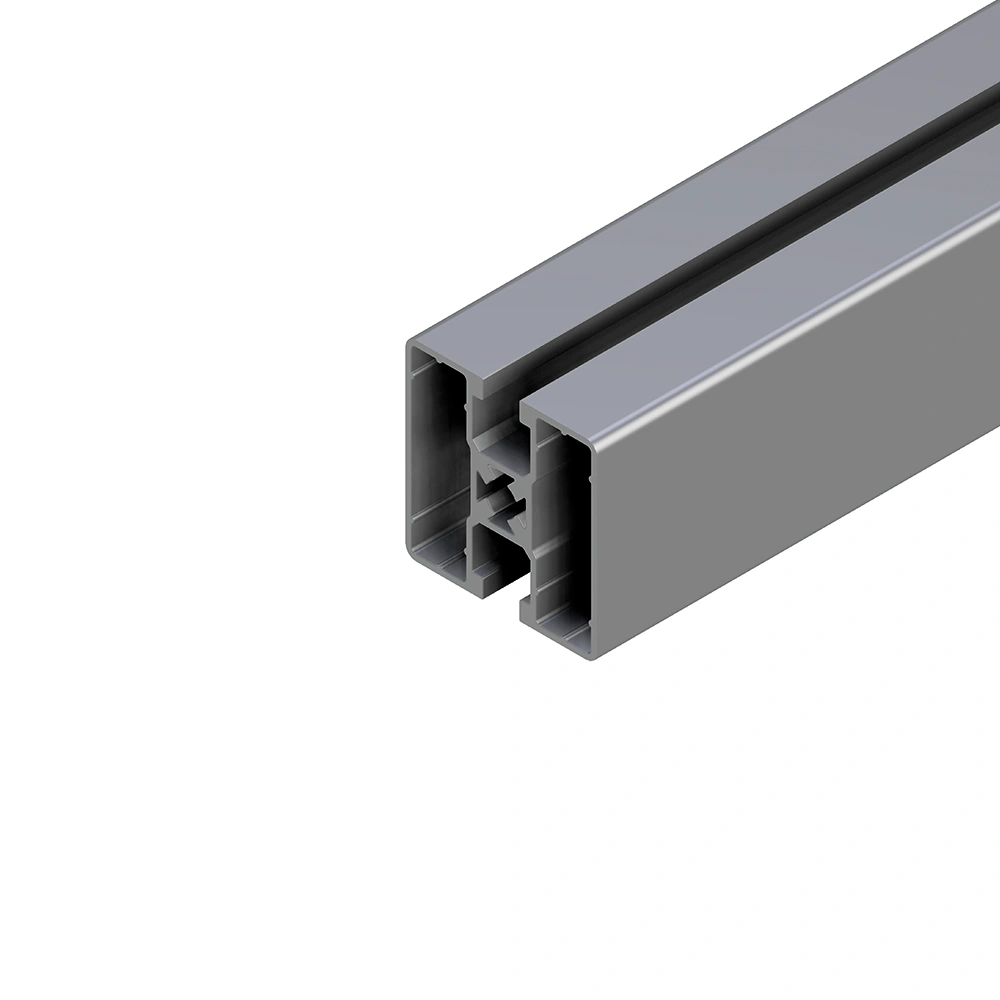

45 x 45 UL 2GG Profile

SKU 20.1122/0 Category Profile

Please note; price per mm is £0.01528

A cutting fee of £2.50 per cut will be added in your basket. For lengths more than 2000 mm, please contact us.

£0.02 + VAT price per 1 mm

Technical Data

Aluminium, extruded, anodised E6/EV1
I_x = 9.974 cm⁴
I_y = 8.553 cm⁴
w_x = 4.432 cm³
w_y = 3.801 cm³
IT = 18.527 cm⁴
Weight = 1.254 kg/m
Bar length = 6 m
Packing unit = 54 m

Applications

Weight-optimised constructions

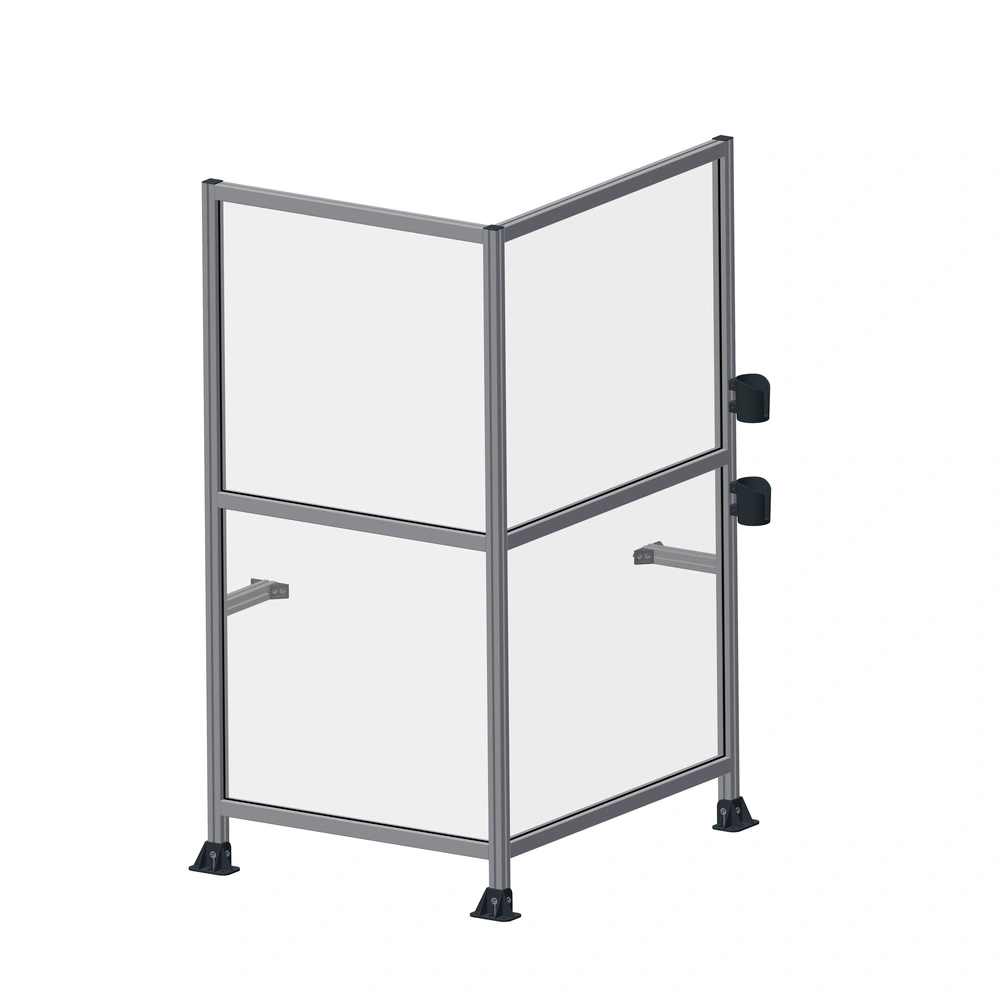

All types of constructions, specifically for high hygiene requirements in the food industry, medical technology, bottling of beverages
Silicone sealings for profile connections on request

Assembly

MiniTec powerlock fastener
Angle 19 / 25 / 45 / 45 x 90 GD-Z
Bolt connector
Screw connection
