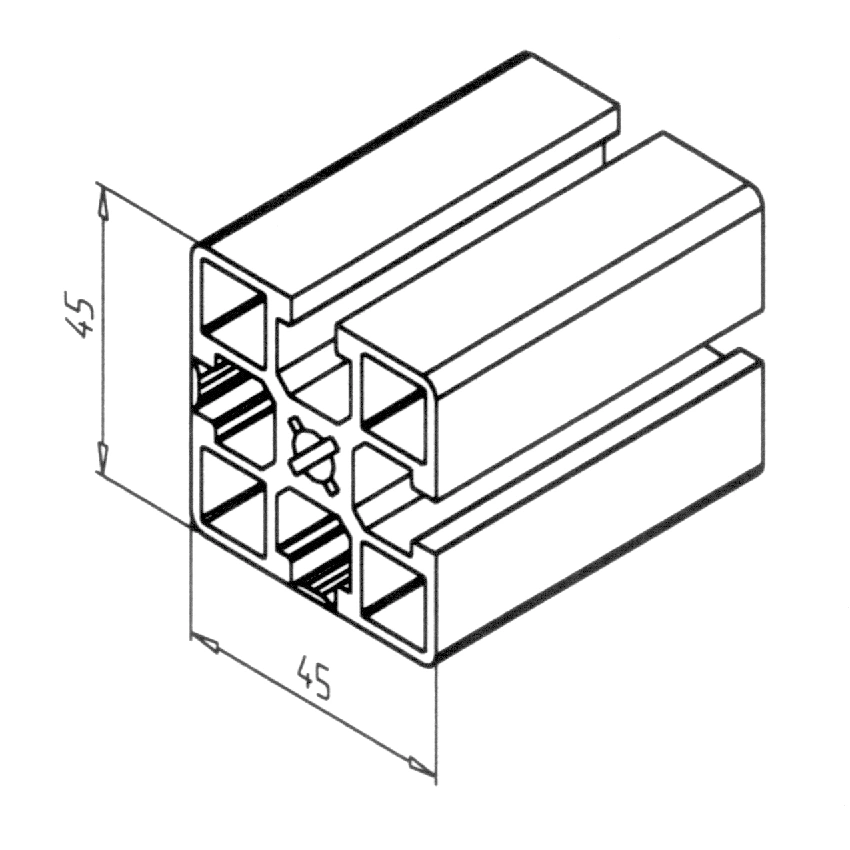

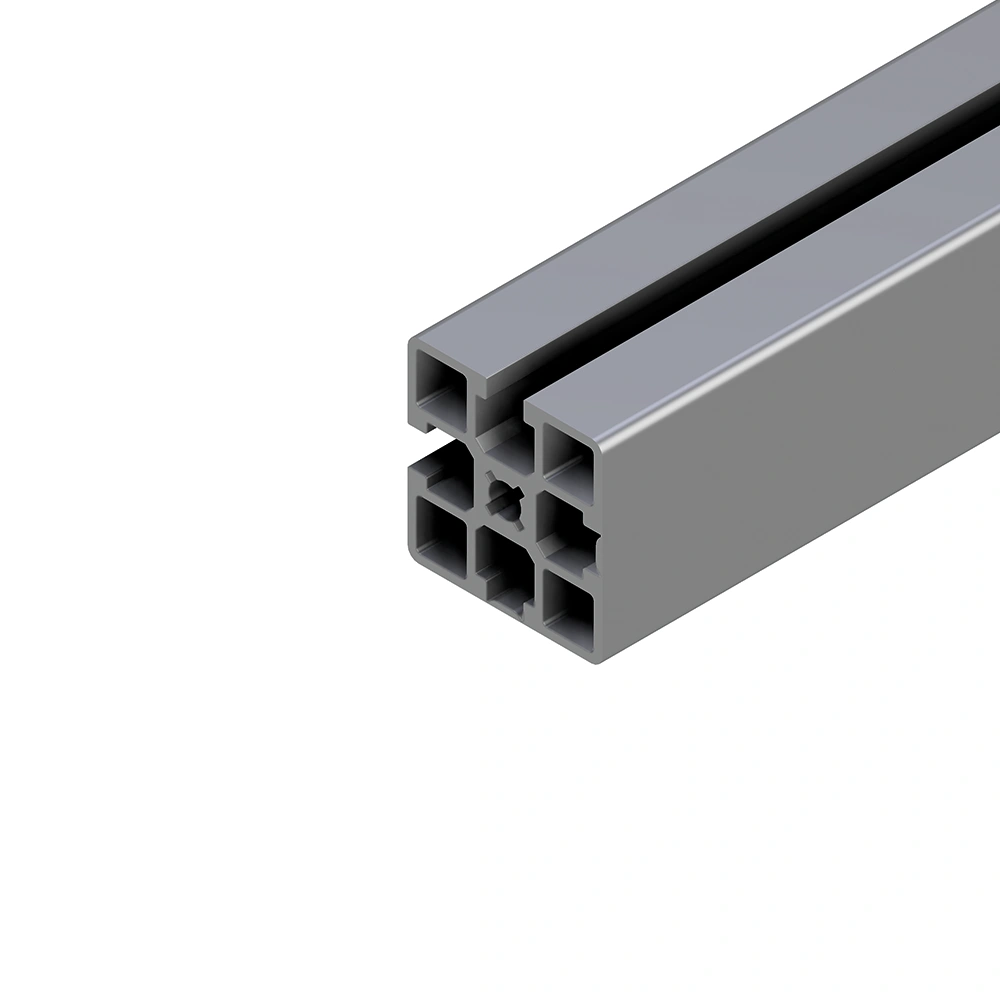

45 x 45 2G Profile

SKU 20.1072/0 Category Profile

Please note; price per mm is £0.02382

A cutting fee of £2.50 per cut will be added in your basket. For lengths more than 2000 mm, please contact us.

£0.02 + VAT price per 1 mm

Technical Data

Aluminium, extruded, anodised E6/EV1
I_x = 13.549 cm⁴
I_y = 13.549 cm⁴
w_x = 5.938 cm³
w_y = 5.938 cm³
IT = 30.578 cm⁴
Weight = 1.925 kg/m
Bar length = 6 m
Packing unit = 36 m

Applications

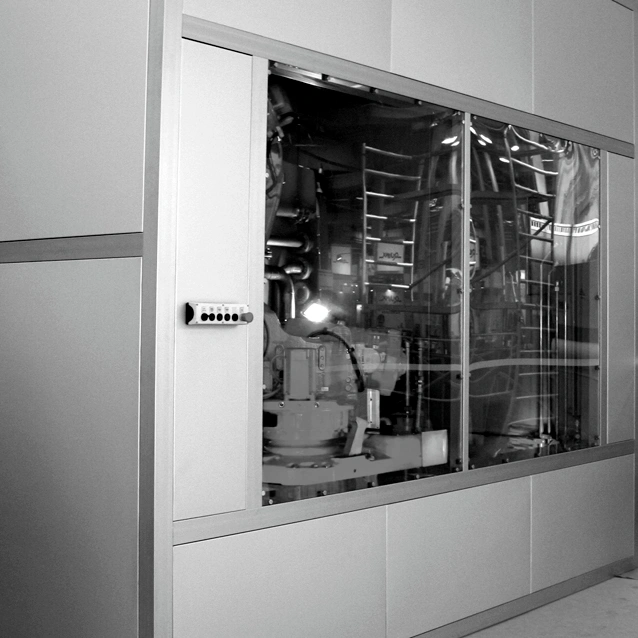

All types of constructions, specifically for high hygiene requirements in the food industry, medical technology, bottling of beverages
To close open grooves with the cover profile L part no. 20.1021/0
Silicone sealings for profile connections on request

Assembly

Powerlock fastener; to use, the groove cover at the end of the profile must be opened using the groove opener. Cover with end cap G part no. 22.1056/0
Angle 25 / 45
Closed grooves can be opened with the groove opener part no. 26.0815/0 to the desired length
