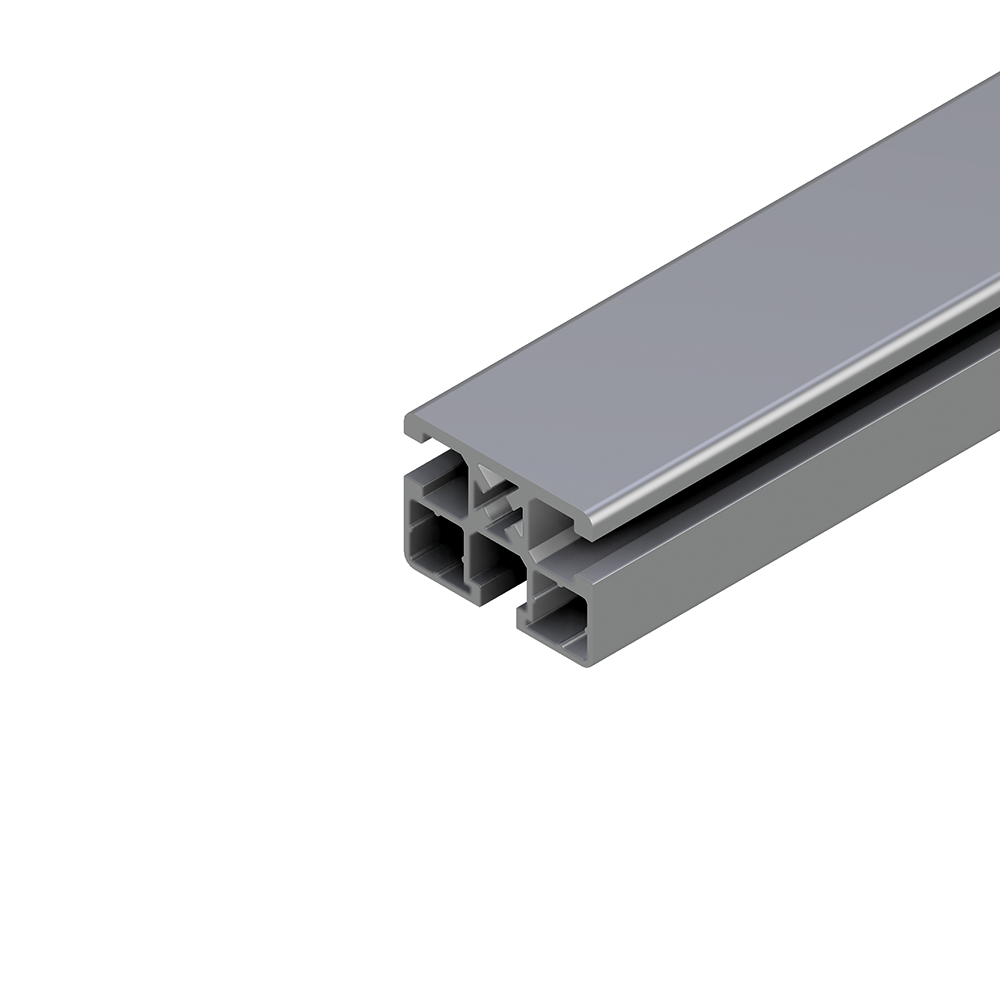

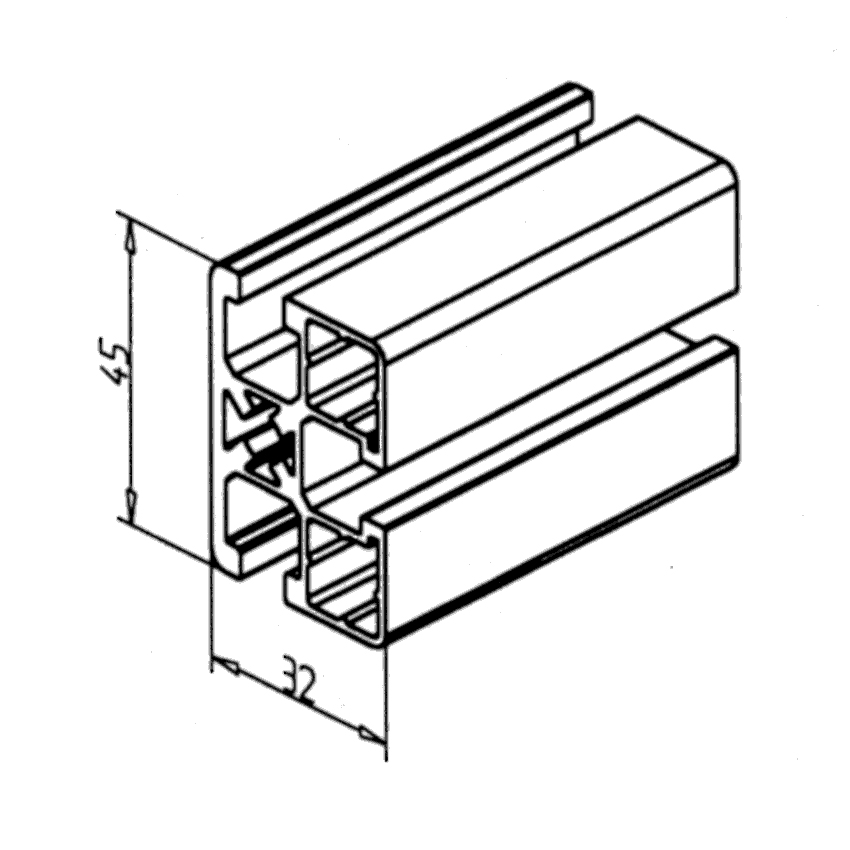

45 x 32 UL Profile
Please note; price per mm is £0.01653.
A cutting fee of £2.50 per cut will be added in your basket. For lengths more than 2000 mm, please contact us.
£0.02 + VAT price per 1 mm
Technical Data
- Aluminium, extruded, anodised E6/EV1
- Ix = 8.292 cm4
- Iy = 5.178 cm4
- wx = 3.685 cm3
- wy = 2.815 cm3
- IT = 5.516 cm4
- Weight = 1.257 kg/m
- Bar length = 6 m
- Packing unit = 48 m

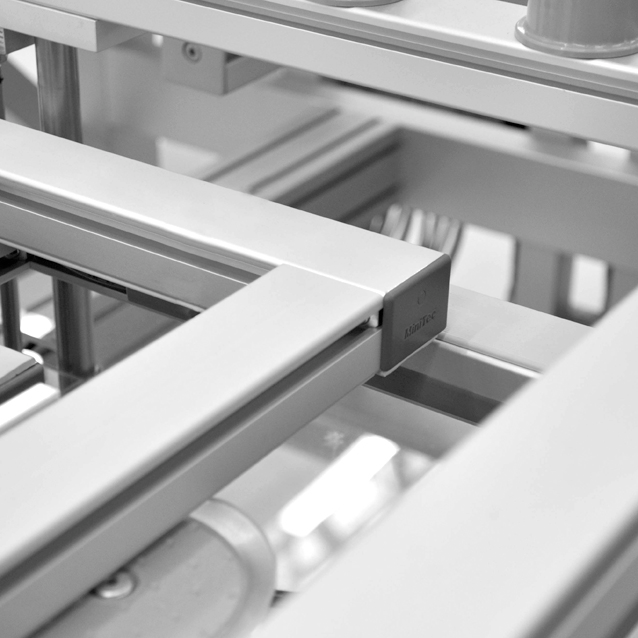

Applications
- All types of constructions, with a closed profile side
- Weight-optimised constructions
- Tables
- Frames
- Sliding doors
Assembly
- MiniTec powerlock fastener
- Angle 19 / 25 / 45 / 45 x 90 GD-Z
- Bolt connector
- Screw connection
