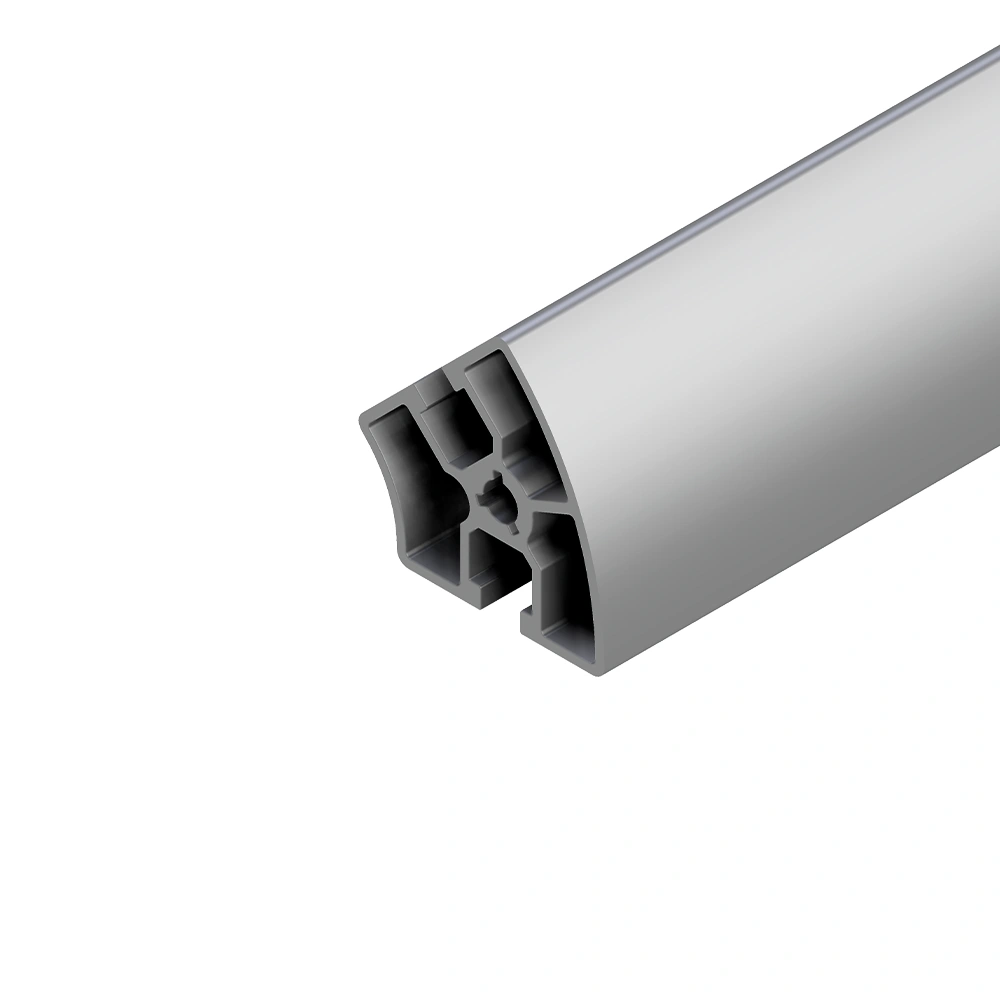

45 R 45° Profile

SKU 20.1095/0 Category Profile

Please note; price per mm is £0.02319

A cutting fee of £2.50 per cut will be added in your basket. For lengths more than 2000 mm, please contact us.

£0.02 + VAT price per 1 mm

Technical Data

Aluminium, extruded, anodised E6/EV1
I_x = 12.457 cm⁴
I_y = 11.296 cm⁴
w_x = 3.976 cm³
w_y = 3.837 cm³
IT = 24.184 cm⁴
Weight = 1.607 kg/m
Bar length = 6 m
Packing unit = 48 m

Applications

Angled enclosures
Tables
Framework constructions
Display windows, showcases

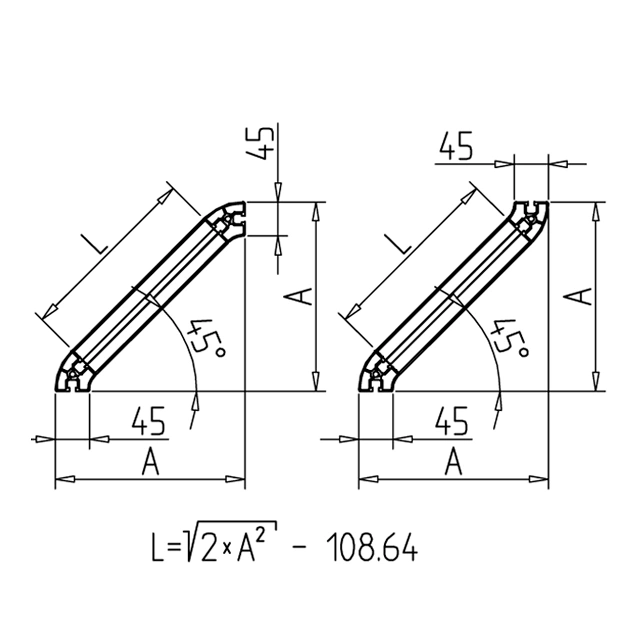

As cross beam:
Calculate dimension L of the intermediate support according to calculating formular

Assembly

MiniTec powerlock fastener
Bolt connector
