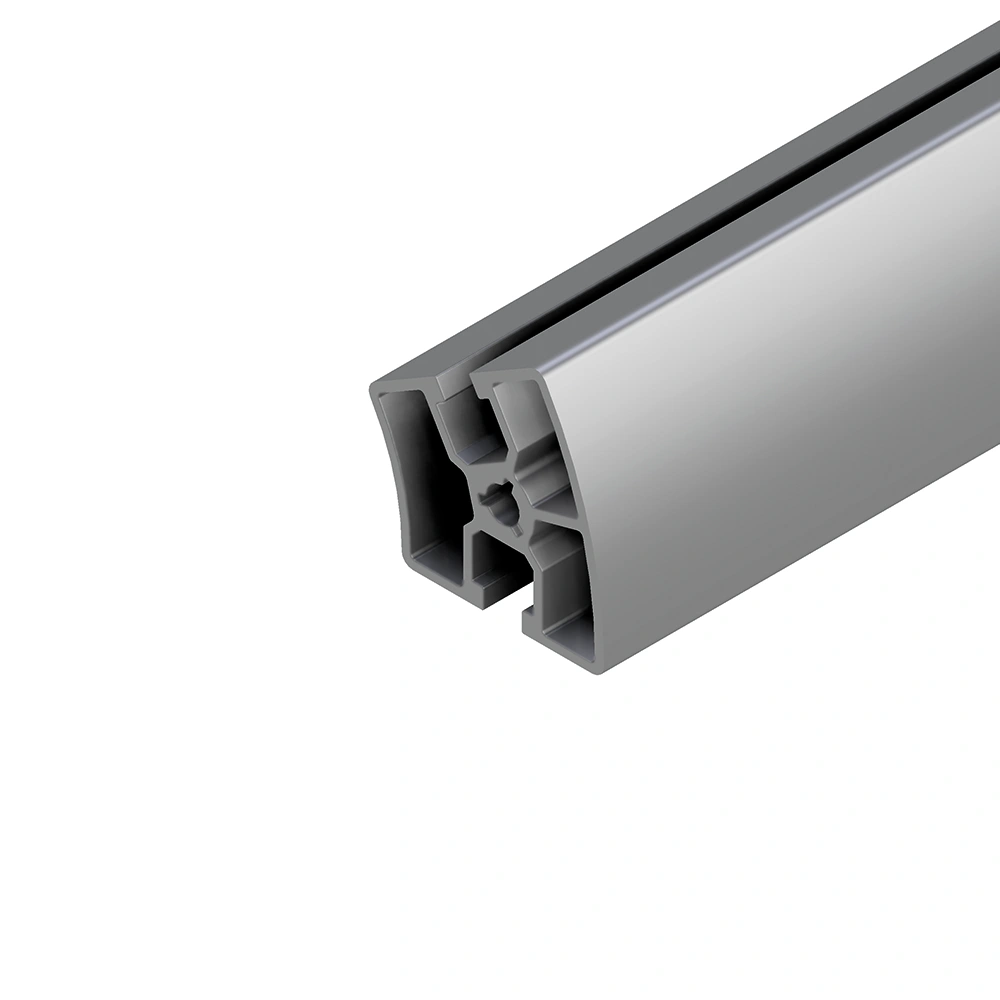

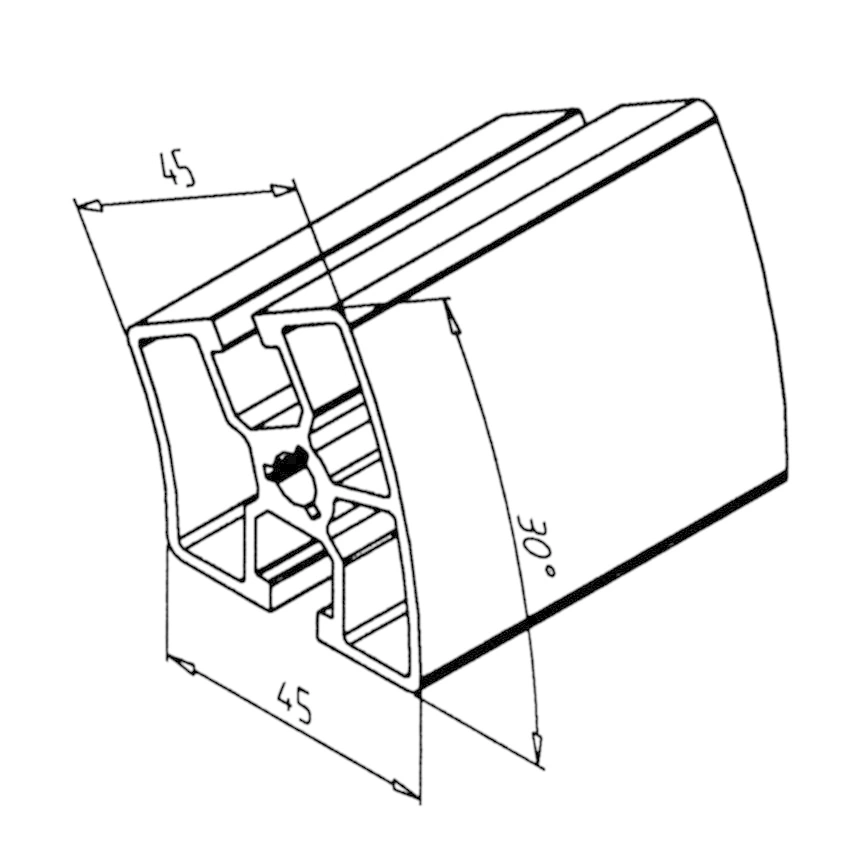

45 R 30° Profile
Please note; price per mm is £0.02319
A cutting fee of £2.50 per cut will be added in your basket. For lengths more than 2000 mm, please contact us.
£0.02 + VAT price per 1 mm
Technical Data
- Aluminium, extruded, anodised E6/EV1
- Ix = 12.138 cm4
- Iy = 11.006 cm4
- wx = 4.018 cm3
- wy = 3.883 cm3
- IT = 25.698 cm4
- Weight = 1.626 kg/m
- Bar length = 6 m
- Packing unit = 48 m
Applications
- Angled enclosures
- Tables
- Framework constructions
- Display windows, showcases

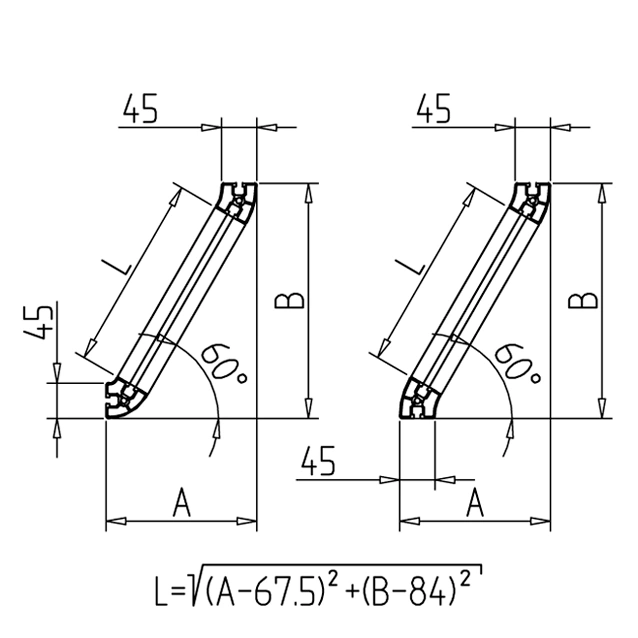

- As cross beam:
Calculate dimension L of the intermediate support according to calculating formular
Assembly
- MiniTec powerlock fastener
- Bolt connector
